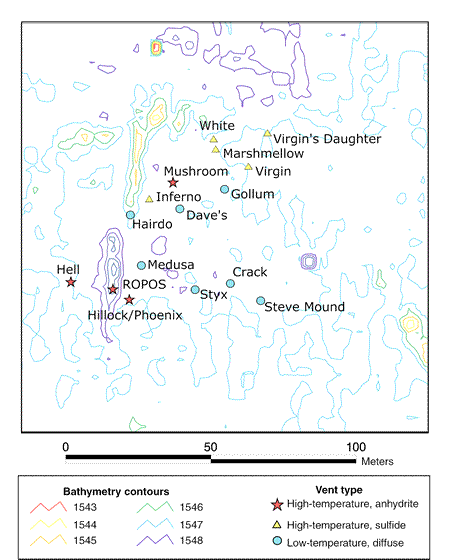

Map of ASHES hydrothermal vent field

  NeMO Net :

Axial volcano and NeMO Net, click for full size map

is a two-way communication system which links monitoring instruments on an active submarine volcano to the Internet. The site of this seafloor observatory is Axial volcano, located about 250 miles off Oregon's coast and 1 mile underwater.

The NeMO Net system uses acoustic modems to relay data from seafloor instruments to a buoy at the surface, which in turn sends the data to NOAA's Pacific Marine Environmental Laboratory via satellite. This year three instruments on the seafloor were linked into NeMO Net: two Remote Access Samplers (RAS) in the ASHES vent field, and a Bottom Pressure Recorder (BPR) near the center of the caldera. The map above shows the location of each component of NeMO Net during the latest deployment.

UPDATE: The NeMO Net buoy and the two RAS samplers were recovered on June 5th, 2003 for servicing, after almost a full year in the field. Therefore, the plots below are no longer being updated, but show the data transmitted to shore between July 22, 2002 and June 5, 2003. The buoy and a RAS sampler will be redeployed during the 2003 NeMO Expedition (August 27-September 8), and the display of real-time data on this site will resume then.

Check out related links . Daily Temperature Data (RAS)

  The two Remote Access Samplers (RAS) were monitoring the chemistry and temperature of two hydrothermal vents in the ASHES vent field. System A was located at a high-temperature vent, and System B was located in a low-temperature vent. Data from two temperature probes from each RAS are displayed below. Data plots for the last 3 days are displayed for each probe as well as the cumulative data. Predicted tides are shown in black for comparison.



Check out related links . Bottom Pressure Recorder (BPR)


More information:

The BPR instrument

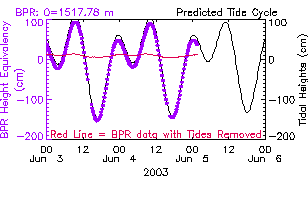

The BPR is located near the center of Axial caldera, and precisely measures the pressure of the overlying ocean, as a way to monitor for inflation or deflation of the volcano. The raw BPR data (purple) closely follows predicted ocean tides (black). But after subtracting the tides from the BPR data, the difference (red) shows any sudden changes in seafloor height which may signal the onset of an eruption at the volcano. Three days of pressure data and the cumulative data are displayed in separate plots, with and without tides.

Check out related links . The NeMO Net buoy


More information:

The NeMO Net Buoy

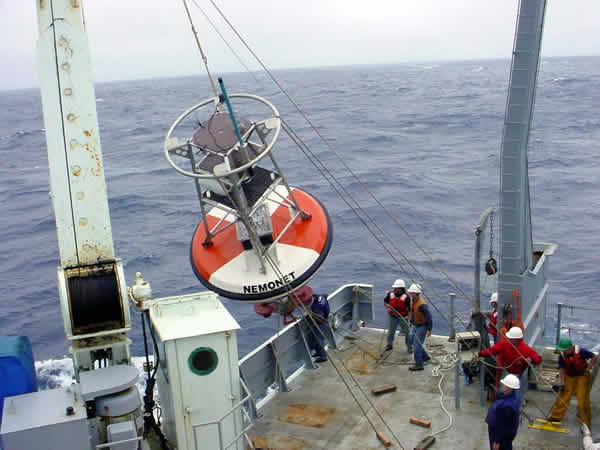

  image of NeMO Net buoy deployment, click for full size
View of the NeMO Net buoy being deployed over the side of the R/V Thompson. Click for a larger view.

The NeMO Net buoy is the critical communications link between the instruments on the seafloor and scientists on shore. The buoy communicates to stations on land via one of two satellite systems, and to the seafloor via acoustic modems. Acoustic modems are like computer modems, but use sound instead of electricity to transfer information.
