Differential Uplift between BPRs at MJ03E & MJ03F


This page displays the Differential Uplift between two Bottom Pressure Recorders (NANO-BPRs) at OOI-RCA nodes MJ03E (Eastern Caldera) and MJ03F (Central Caldera) at Axial Seamount. It is calculated by simply subtracting the de-tided depth from the BPR at MJ03F (Central Caldera, which has the highest inflation rate) and the BPR at MJ03E (Eastern Caldera, which has the lowest inflation rate). We think this differential uplift is a clearer representation of the volcanic inflation signal, because it removes the "noise" of tidal residuals and oceanographic effects that are common to both stations, which are <5 kilometers apart. We then use the average rate of Differentail Uplift for the last 4-weeks on the Forecasting - Method #2 page, the rate from the last 12-weeks on the Forecasting - Method #3 page, and the rate from the last 24-weeks on the Forecasting Method #4 page.



These data are from the BOTPT instruments, which are part of the National Science Foundation's (NSF) Ocean Observatories Initiative (OOI) Regional Cabled Array (RCA) seafloor observatory, operated by the University of Washington. The dates/times below are in GMT (+8 hrs of local standard time, or +7 hrs of DLS time on the US west coast).

LINK BACK TO MAIN PAGE

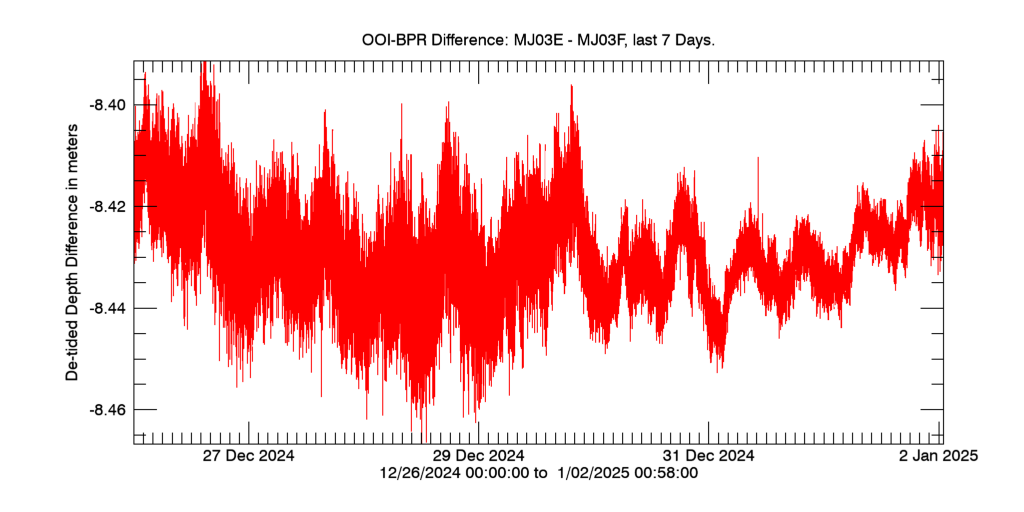

Depth-difference (MJ03E-MJ03F), last 7 days

Plot of depth difference - last 7 days

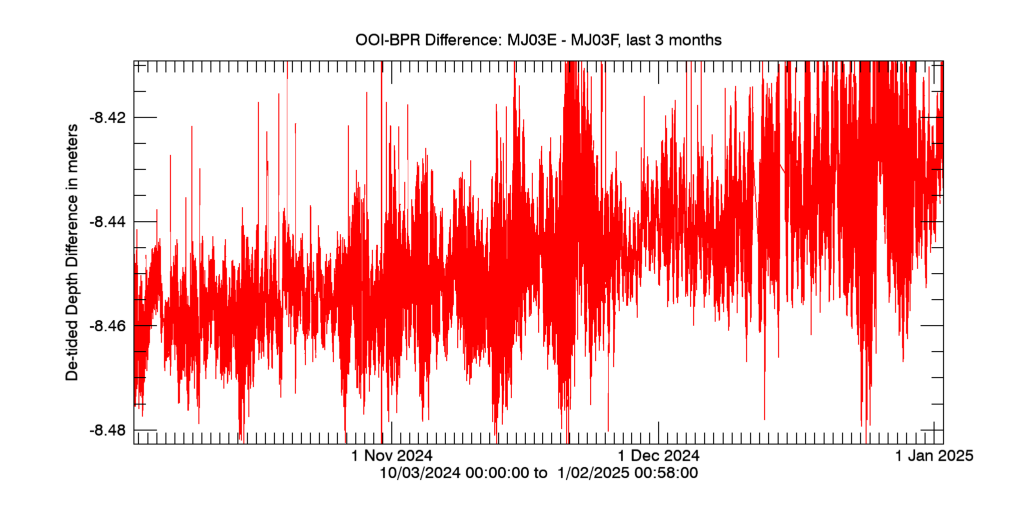

Depth-difference (MJ03E-MJ03F), last 3 months

Plot of depth difference - last 3 months

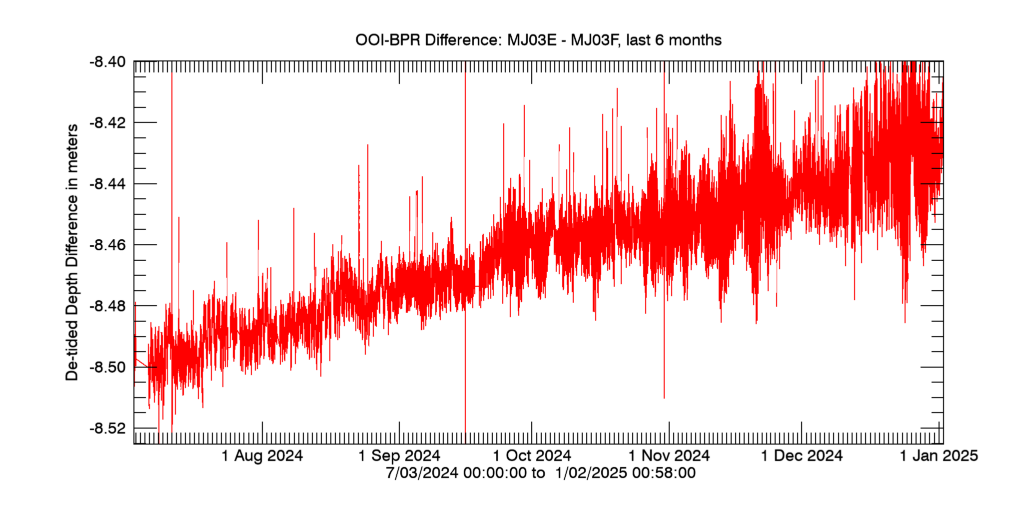

Depth-difference (MJ03E-MJ03F), last 6 months

Plot of depth difference - last 6 months

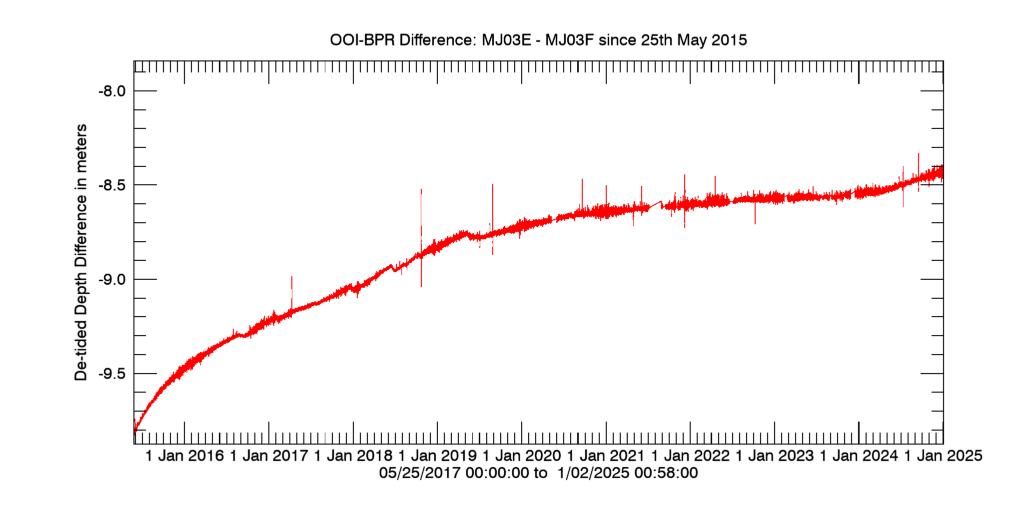

Depth-difference (MJ03E-MJ03F), since the 2015 eruption (25 May 2015)

Plot of depth difference - since 25 May 2015

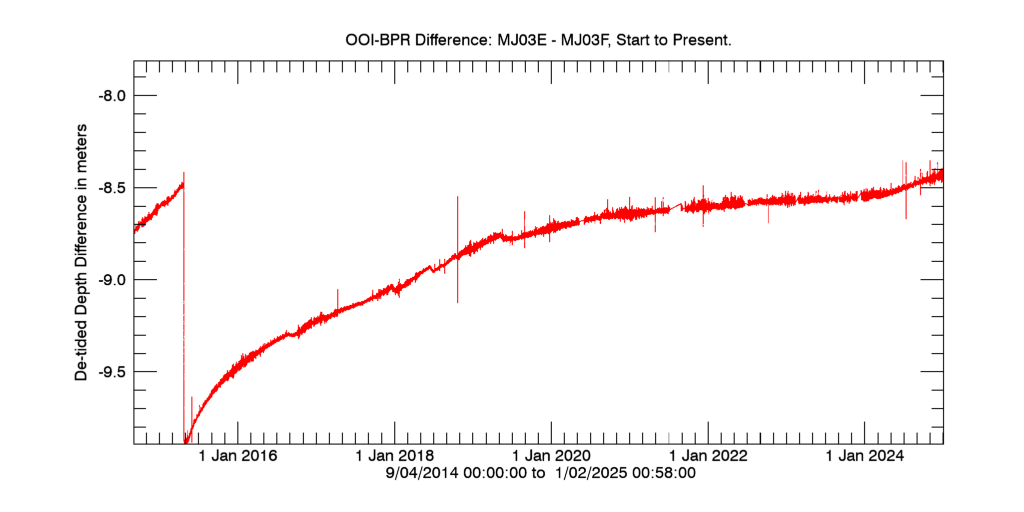

Depth-difference (MJ03E-MJ03F), Start to Present

Plot of depth difference - from start to present


More information
