Inflation Threshold Forecasts - Method #4 (last 6 months)
This is a fourth alternative method of forecasting the time when Axial Seamount will reach the inflation level reached before the 2015 eruption started. The main difference between Forecasting - Method #3,and Method #4 is that in this one we are averaging the rate of uplift over the last 6 months (instead of 3 months for Method #3). We use the 6-month inflation rate to extrapolate into the future to when the differential level of inflation will reach: (1) the level when the 2015 eruption started, and (2) a level 20 cm higher than in 2015. These plots are updated once a day using the latest data from the OOI Cabled Array.
Note: the rate of inflation is variable and so the forecast dates will also vary with time. The histogram plot below shows the dates where most of the daily forecasts have fallen. Of course, we do not know at exactly what level of inflation the next eruption at Axial will be triggered, but our best guess is that it will be within a year after the 2015 inflation threshold is reached. We will likely make a more specific forecast when we get closer to that threshold on our Axial Seamount Eruption Forecast Blog. Programing by Andy Lau, Oregon State University.
LINK BACK TO MAIN PAGE
Rate of Differential Uplift (MJ03E-MJ03F), last 6 months

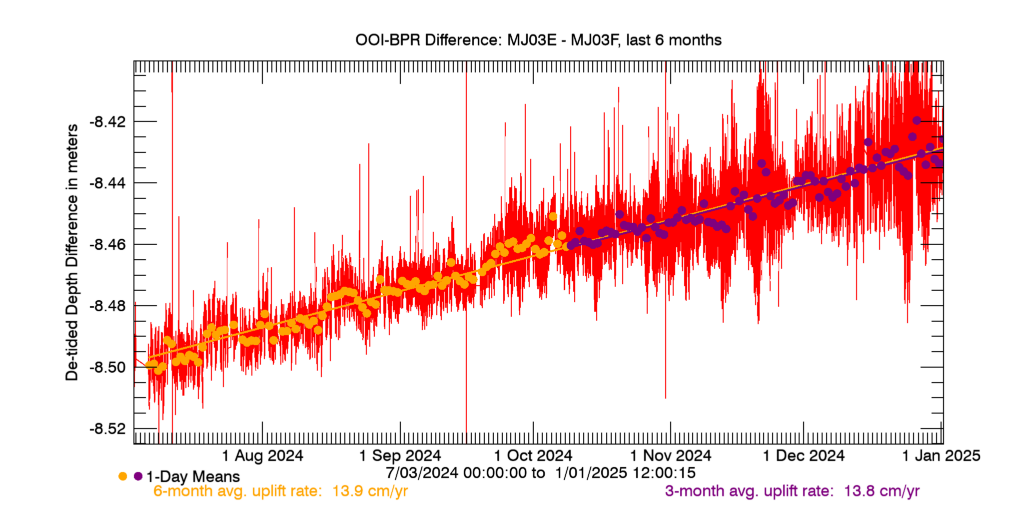

Plot of Differential Uplift between the BPRs at the Eastern Caldera (MJ03E) and Central Caldera (MJ03F) sites for the last 6 months. Rates of Differential Uplift are calculated for the last 3 and 6 months. The 6-month rate is used in the forecasts below.
Plot of how the 6-month (orange) and 3-month (purple) average Rates of Differential Uplift have varied over time, since 25 May 2015.
Inflation Threshold Forecasts using Differential Uplift Rate (last 6 months)
Plot of OOI BPR data from the Caldera Center (BOTPT-A301-MJ03F; black curve) showing deflation during the 2015 eruption (left) followed by re-inflation. If the rate is positive, a blue dashed line extrapolates into the future using the average rate of inflation from the last 6 months; middle blue dot is date when 2015 inflation threshold is reached, right purple dot is when a threshold 20 cm higher will be reached. Specifics are included in the legend on the plot. Click for a larger version this plot.

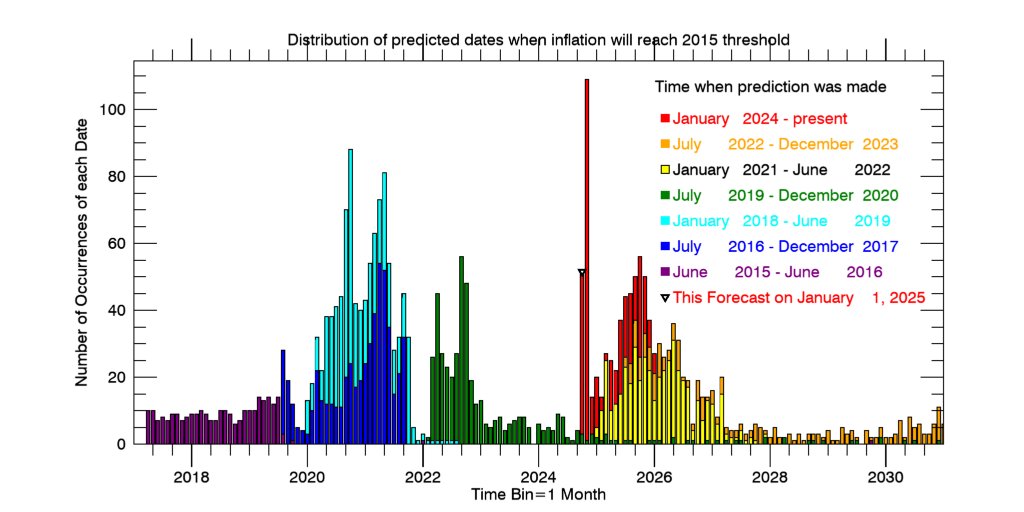

Histogram of predicted dates when Axial Seamount will reach the 2015 threshold, color coded by when the predicted date was calculated. Predicted dates were calculated based on the average rate of reinflation from the previous 6 months, beginning in June 2015. Predicted dates are binned in months. Click for a larger version this plot.
Plot of Predicted date that inflation will reach the 2015 inflation threshold (Y-axis) vs. Date on which the prediction was made (X-axis), using the average rate of inflation from the previous 6 months, starting in June 2015. Blue dots are date to reach the 2015 inflation threshold; purple dots are for a threshold 20 cm higher (as in the first plot above). Note predicted dates were earliest when the rate of re-inflation was highest, soon after the 2015 eruption (left side of plot). Peaks in the curves show time periods when the average rate of inflation slowed significantly (especially in mid-2019), which pushed the predicted dates farther into the future. Click for a larger version this plot.
