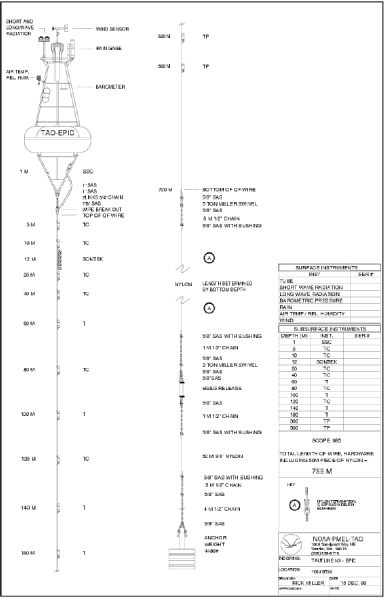

Diagram of the 10N 95W TAO/EPIC buoy
Pictures of the 10N 95W TAO/EPIC buoy bridle bracket for SBE39

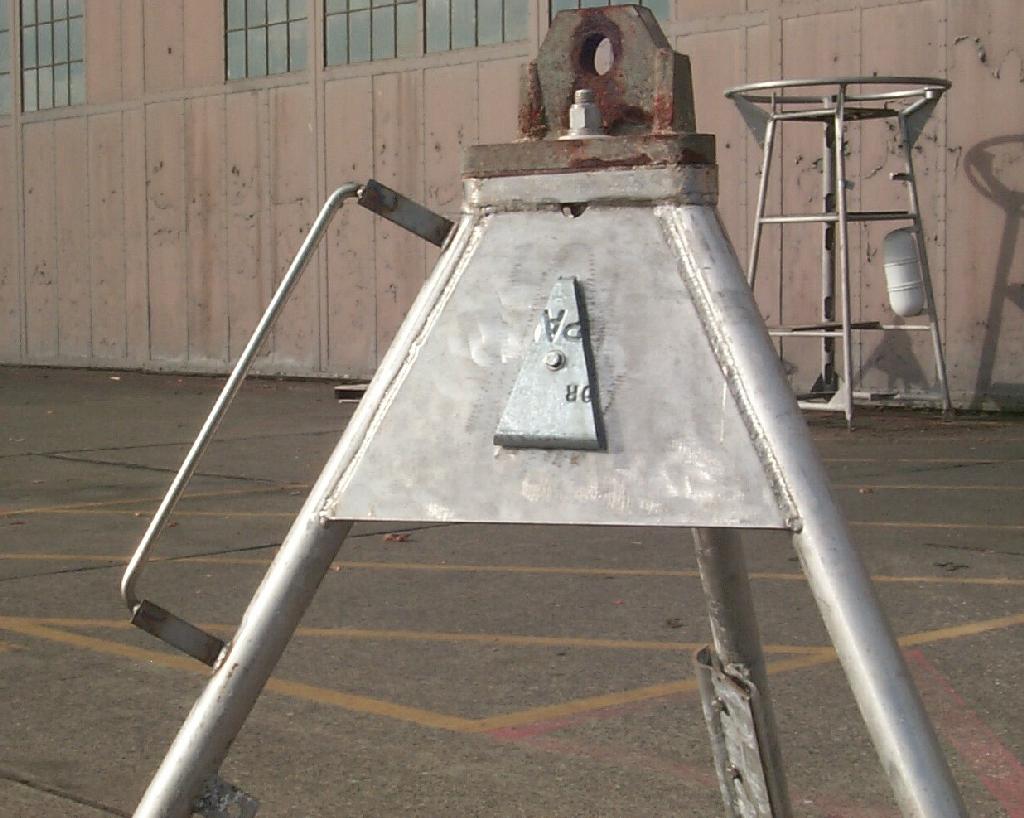

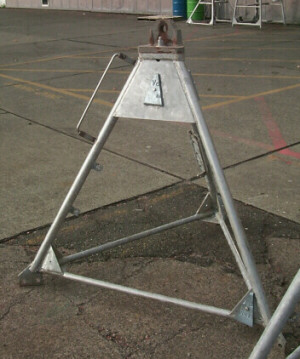

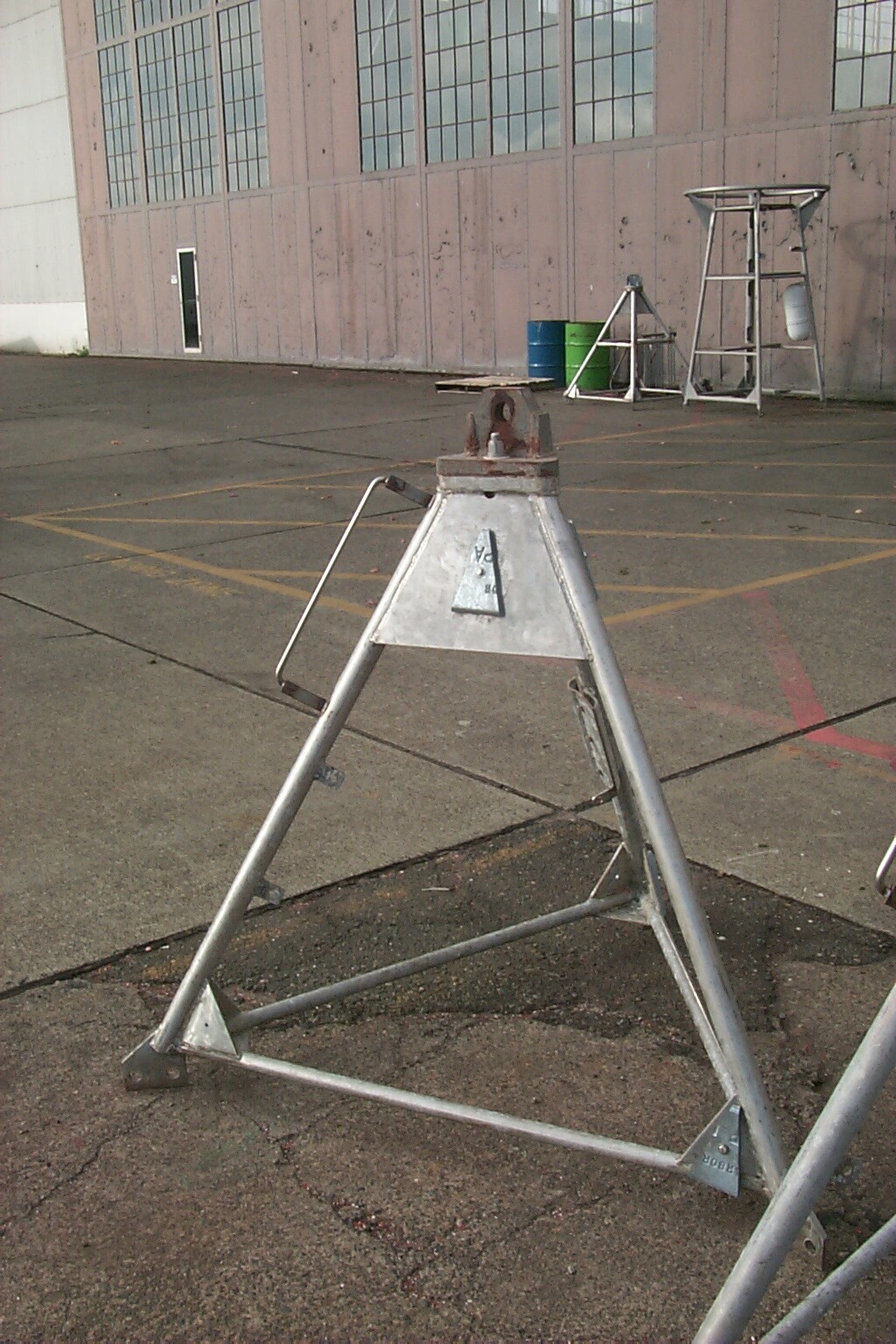

For EPIC2001 (August-September 2001), the 10N, 95W (or 8N,95W) buoy will be enhanced with extra temperature sensors so that vertical resolution in the top 10 m is 1 m. This work will be done in collaboration with Dr. Carter Ohlmann of UCSB. Photos of the bracket for the ~2 m sensor are shown below.
