Table for Berchok, 20 NMML moorings

Mooring Hardware Request

NMML - C. Berchok
Sept 2015 - F/V Aquila
17 Moorings
(Beaufort, Bering, Chukchi Seas)

   link back to main EcoFOCI Mooring Page for 2013
Yellow mooring float with ice profiler in frame. Photo by Scott McKeever
Click for larger image
updated 7 July 2015

Subsurface Moorings Sept 2015

17 subsurface moorings will be deployed, same design as 2014, 2 release types. (see images below, right)
9 of these moorings will be turned around at sea, including releases & stainless.
Need stainless and new releases for 8 moorings.
Equipment will load August 25, 2015 (estimate).


No floats are required from the shop.
No deck set (sharing with Lebon).
No ship loading assistance needed.
No new swivels/isolator plates (use parts from last year's at-sea work).

Need:
Project: NMML - C.Berchok
Location: Beaufort, Bering, Chukchi Seas
Latitude:
Longitude:
seafloor ~40 meters
Deployment12 months

Instruments:
AURAL 17 NMML
release 17
Mooring:
Instrument:Depth
30" float 1m stainless chain float-to-AURAL
AURAL   1m chain AURAL-to-release
release  1.5m chain release-to-anchor
seafloor   varying depths (40,50,100m)

Shipping Information: Estimate loading Sand Point, August 25, 2015

Special Note 1: Turnaround 9 moorings from last year.
"Need" (above) lists parts for 8 moorings.
Special Note 2: 2015 Releases: 8 of 866HB units and 9 of 8242 units

NOTE: This request is for NMML, Catherine Berchok.

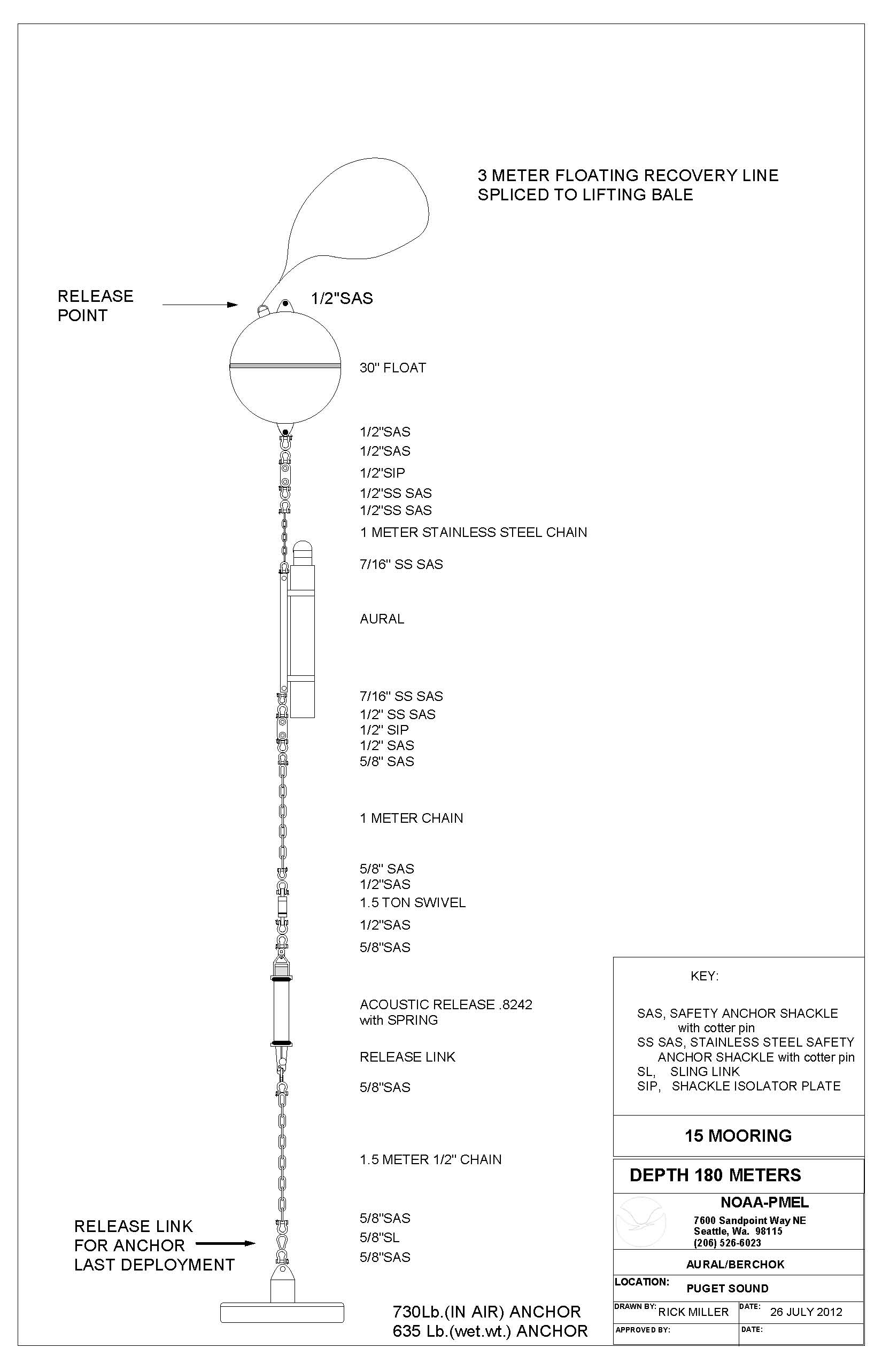

Mooring Design Examples (from 2014)
  2 Release Types


8242 releases


866HB releases
