MF00-08F

Date: April 24, 2000
Addendum: May 22, 2000
(deploy drifters)

FINAL CRUISE INSTRUCTIONS
NOAA Ship MILLER FREEMAN

Cruise No: MF00-08
FOCI No: 6MF00

Applicability:

These instructions, with "FOCI Standard Operating Instructions for NOAA Ship MILLER FREEMAN, 2000," present complete information for this cruise.

Area:

Gulf of Alaska

Itinerary:

May 25, 2000 Depart Dutch Harbor
June 4, 2000 Arrive Kodiak

Participating organizations:

NOAA - Alaska Fisheries Science Center (AFSC)
NOAA - Pacific Marine Environmental Laboratory (PMEL)

CRUISE DESCRIPTION:

Fisheries-Oceanography Coordinated Investigations (FOCI) is an effort by NOAA and associated academic scientists. At present, FOCI consists of a Shelikof Strait (western Gulf of Alaska) walleye pollock project, and a NOAA Coastal Ocean Program project: Southeast Bering Sea Carrying Capacity. FOCI also supports associated projects, such as the Arctic Research Initiative, U.S. GLOBEC, and NSF Inner Front Study, that address scientific issues related to FOCI's. FOCI's goal is to understand the effects of abiotic and biotic variability on ecosystems of the North Pacific Ocean and Bering Sea in order to discern the physical and biological processes that determine recruitment variability of commercially valuable finfish and shellfish stocks in Alaskan waters.

CRUISE OBJECTIVES:

1. To conduct a ichthyoplankton survey from Unimak Pass to and around Kodiak Island.
2. To conduct nearshore sampling of ichthyoplankton using a small vessel deployed from the Freeman.
3. To deploy two satellite-tracked drifters in the vicinity of Unimak Pass at [54° 13'N, 166° 38'W] and [54° 22'N, 166° 10'W] (added 5/22/00).

1.0. PERSONNEL

1.1. Chief Scientist:

Kevin M. Bailey, Male, Alaska Fisheries Science Center
206-526-4243
Kevin.Bailey@noaa.gov
The Chief Scientist has the authority to revise or alter the technical portion of the instructions as work progresses provided that, after consultation with the Commanding Officer, it is ascertained that the proposed changes will not: (1) jeopardize the safety of personnel or the ship; (2) exceed the overall time allotted for the project; (3) result in undue additional expenses; (4) alter the general intent of these project instructions.

1.2 Participating Scientists:

Steven Porter, Male, Alaska Fisheries Science Center
Sue Picquelle, Female, Alaska Fisheries Science Center
Annette Brown, Female, Alaska Fisheries Science Center
Debbie Blood, Female, Alaska Fisheries Science Center
Rachael Cartwright, Female, Alaska Fisheries Science Center

1.3 NOAA Marine Operations Center, Pacific Contact:

Larry Mordock
NOAA/MOP (MOP1x4)
1801 Fairview Ave. East
Seattle, WA 98102-3767
(206) 553 - 4764
Larry.Mordock@noaa.gov

1.4 Program Contacts:

Dr. Phyllis Stabeno
PMEL
7600 Sand Point Way NE
Seattle, WA 98115
(206) 526-6453
Phyllis.stabeno@noaa.gov
Dr. Art Kendall
AFSC
7600 Sand Point Way NE
Seattle, WA 98115
(206) 526-4108

2.0. OPERATIONS

A standard oceanographic watch will be utilized which consists of a winch operator, a scientific staff of three and a Survey Tech on deck. Operations will be conducted 24 hours a day. All other operations will be conducted in accordance with the Standard Operating Instructions.

2.1. SUMMARY OF ACTIVITIES:

Phase 1. The ship will proceed from Dutch Harbor and do a short ichthyoplankton survey of the region between Unimak Pass and the Shumagin Islands, consisting of about 20 stations (see Appendices 1-3).
Phase 2. A regular FOCI grid survey of will be conducted between the Shumagin Islands and Kodiak Island. The standard sampling gear will be the 60cm bongo with 505µm mesh netting. The survey will proceed from the area of the Shumagin Islands towards the northeast. A map of the survey stations is shown in Appendix 4. Station positions are shown in Appendix 2, with the most likely stations highlighted in bold type. Line 8 will be sampled en route. Line 8 sampling will include 20 and 60 cm bongos, and CTDs with water samples for microzooplankton, chlorophyll and nutrients. Line 8 station positions are shown in Appendices 5 and 6.
Phase 3. Bongo stations will be established in the nearshore coastal region between Cape Kubugakli and Chignik Bay, or in Uyak Bay. Sampling will be conducted from a small vessel deployed from the Freeman. It is anticipated that this sampling will take 1-2 days. Station positions for the nearshore sampling are shown in Appendix 7.
Phase 4. In the event of a storm, a break in any of the prior Phases may be called for by the Chief Scientist in order to opportunistically monitor before and after storm conditions. Storm monitoring will include CTD's (nutrients, chlorophyll and mzp), Tucker and bongo tows. Live tows will be conducted with the bongo gear to examine larval condition. Methot tows may be conducted.
Phase 5. An ichthyoplankton survey of the seaward side of Kodiak Island and selected bays will be conducted while en route to Kodiak (see Appendix 8). The standard gear will be the 60 cm bongo array.
There has been a request for 1-2 days of ichthyoplankton sampling in the vicinity of Unimak Pass that is currently under evaluation. At this time it is unlikely that this work will proceed. If it is decided to proceed with this work, the other phases of the project will be shortened.

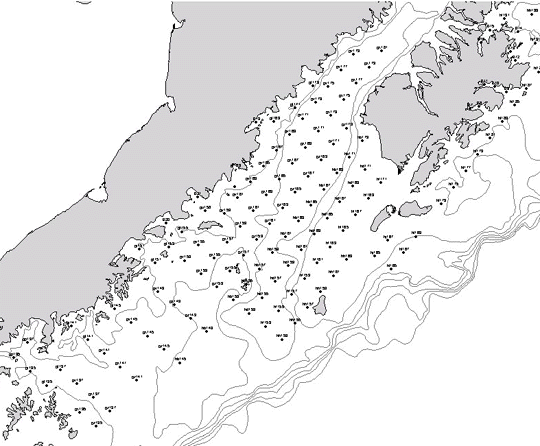

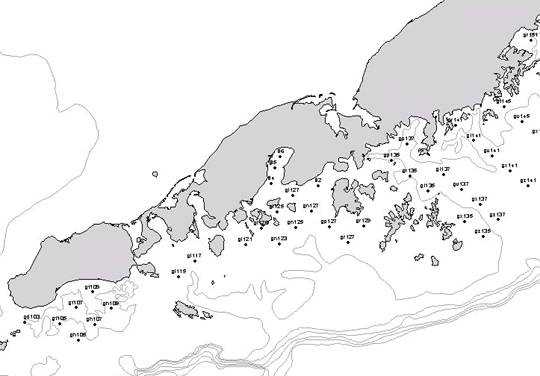

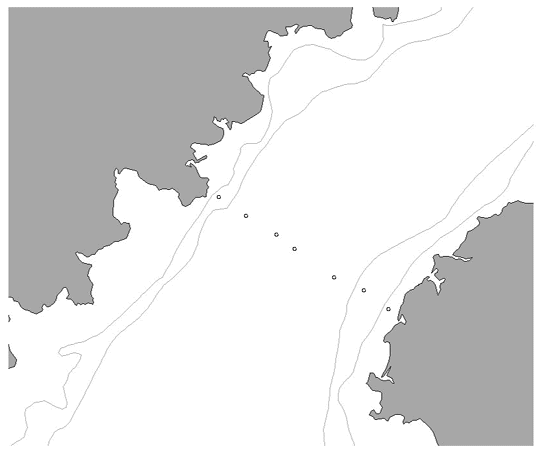

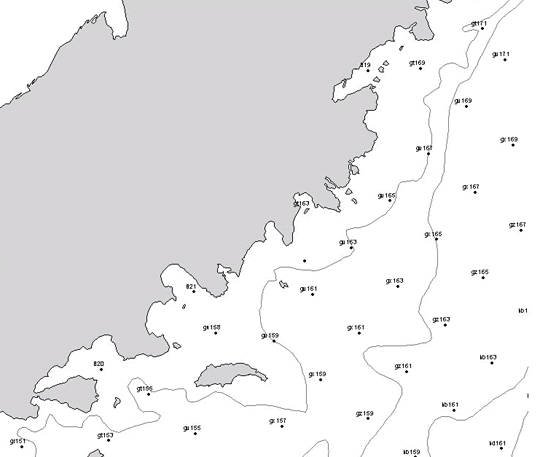

Station positions and maps of the grid stations for the ichthyoplankton survey are found in the Appendices. The most likely stations to be occupied are noted in the Appendices, however, the stations occupied from the list and their order of occupation will be established on a day to day basis. The chief scientist will attempt to notify the bridge of stations to be occupied 24h in advance. The nearshore ichthyoplankton stations are approximate locations at this time. Some stations may be in areas where navigation is difficult; where station locations are in dangerous waters, positions can be changed to another nearby location or eliminated after discussion with the chief scientist.

2.2 PROCEDURES FOR OPERATIONS:

The following are operations to be conducted on this cruise. The procedures for these operations are listed in the FOCI Standard Operating Instructions (SOI). Operations not addressed in the SOI and changes to standard procedures are addressed below.
CTD/Water samples (SOI 2.2.1)
MARMAP bongo tow (SOI 2.2.2)
Bongo larval condition tow (SOI 2.2.3)
Chlorophyll samples (SOI 2.2.10)
Radiometer (SOI 2.2.14)
Ichthyoplankton sampling from the Munson will be conducted in bays and nearshore regions that are too shallow for the Freeman to sample. The gear used on the Munson will be the 60cm bongo with 505 mesh. The tow will be 9-15 minutes, stepped obliquely in layers depending on the bottom depth. For example if the bottom depth is 20m, the gear will be lowered as usual to 5m off bottom, towed there at 15 m for 3 minutes, raised to 10 m and towed for 3 minutes and raised to subsurface (1 m) and towed for 3 minutes. The boat will be expected to be away from the Freeman for up to 8 h. Depending on conditions, and requirements 1-2 crew members and 1-2 scientists will be onboard.

3.0. FACILITIES AND EQUIPMENT

The following systems and their associated support services are essential to the cruise. Sufficient consumables, back-up units, and on-site spares and technical support must be in place to assure that operational interruptions are minimal. All measurement instruments are expected to have current calibrations, and all pertinent calibration information shall be included in the data package.

3.1 Equipment and Capabilities to be Provided by the Ship

Oceanographic winch with slip rings and 3-conductor cable terminated for CTD,

Wire-angle indicator and readout for oceanographic winch,
Oceanographic winch for bongo net (and other nets when used) with slip rings and 3-conductor cable terminated for the SeaCat,
Sea-Bird 911 plus CTD system to be used with PMEL stand (primary system)
(The underwater CTD unit should have mounts compatible with the PMEL CTD stand),
Sea-Bird 911 plus CTD system with stand (back up system),
(Each CTD system should include underwater CTD, weights, and pinger and there should be one deck unit and tape recorder for the two systems),
10-liter sampling bottles for use with rosette (10 plus 4 spares),
For CTD field corrections: AUTOSAL salinometer,
Sea-Bird SBE-19 Seacat system (backup system),
Meter block for plankton tows,
Wire speed indicators and readout for quarterdeck, Rowe and Marco winches,
For meteorological observations: 2 anemometers (one R. M. Young system interfaced to the SCS), calibrated air thermometer (wet-and dry-bulb) and a calibrated barometer and/or barograph,
Freezer space for storage of biological and chemical samples (blast and storage freezers),
Simrad EQ-50 echo sounder ,
JRC JFV-200R color sounder recorder,
RDI ADCP with write connects to a PC-compatible data acquisition computer with Iomega Zip drives,
Radar tracked drifter buoy,
Use of Pentium PC in DataPlot for data analysis,
SCS (Shipboard Computer System),
Electrical connection between Rowe winch and DataPlot,
Laboratory space with exhaust hood, sink, lab tables and storage space,
Sea-water hoses and nozzles to wash nets (quarterdeck and aft deck),
Adequate deck lighting for night-time operations,
Navigational equipment including GPS and radar ,
Safety harnesses for working on quarter deck and fantail,
Munson as vessel for nearshore sampling. Needed on board are a winch for doing stepped horizontal plankton tows, a wireout display, depth sounder, GPS location device, radio for voice communication with Freeman, deck hose and pump for washing nets, sufficient deck space to wash and preserve sample.

3.2 Equipment to be Provided by the Project

Sea-Bird SBE-19 Seacat system (primary system),
PMEL PC with SEASOFT software for CTD data collection and processing,
Fluorometer, light meter, and chlorophyll absorbance meter (ChlAM) to be mounted on CTD,
CTD stand modified for attachment of fluorometer,
Conductivity and temperature sensor package to provide dual sensors on the primary CTD,
CTD rosette sampler,
IAPSO water,
60-cm bongo sampling arrays,
20 cm bongo arrays,
Spare wire angle indicator,
ScanMar,
CalVET net array,
Holy sock drogue for ship's radar tracked drifter buoy,
Miscellaneous scientific sampling and processing equipment ,
Scientific ultra-cold freezer.
Discrete Sample Data Base software and forms.
Methot trawl
Tucker trawl
Satellite-tracked drifters (added 5/22/2000)

3.3. Ship's Computer System (SCS)

The ship's Scientific Computer System (SCS) shall operate throughout the cruise, acquiring and logging data from navigation, meteorological, oceanographic, and fisheries sensors. See FOCI Standard Operating Instructions for specific requirements. Contact CST Wm. Floering for further information.

4.0 DATA AND REPORTS

Data disposition, responsibilities and data requirements are listed in the FOCI Standard Operating Instructions.

5.0 ADDITIONAL INVESTIGATIONS AND PROJECTS

5.1. Piggyback projects:

None at this time.

6.0 MISCELLANEOUS

6.1. Hazardous Materials:

The Chief Scientist shall be responsible for complying with NC Instruction 6280A, Hazardous Waste; policy, guidance, and training, dated February 4, 1991, paragraph 7.g and paragraph 9. By federal law, the ship may not sail without a complete inventory of MSDS, and appropriate neutralizing agents, buffers, and/or absorbents in amounts adequate to address spills of a size equal to the amount aboard.
The following hazardous materials will be provided and controlled by the scientists with the Chief Scientist assuming responsibility for the safe handling of such substances:
Formalin
Ethanol
z-fix

7.0 COMMUNICATIONS

7.1. Important phone numbers, fax numbers and e-mail addresses:

PMEL/CARD Fax: (206) 526-6485
PMEL/ADMIN Fax: (206) 526-6815
AFSC/RACE Fax: (206) 526-6723
MILLER FREEMAN COMSAT (government account numbers): These are much cheaper than Inmarsat direct numbers and should always be used first.
800-678-0872, after voice prompt dial 330-394-113, after tone dial customer ID# (Voice)
800-678-0872, after voice prompt dial 761-267-348, after tone dial customer ID#(Fax)
PI's should establish their ID#'s with their program.
Inmarsat(direct numbers)
011-872-330-394-113 (voice)
011-872-761-267-348 (fax)
CELLULAR: 206-660-7167
DUTCH HARBOR ROAMER: 907-391-7626
KODIAK ROAMER: 907-528-7626
(First dial the roamer, wait for dial tone, then dial cellular number).

8.0. APPENDICES

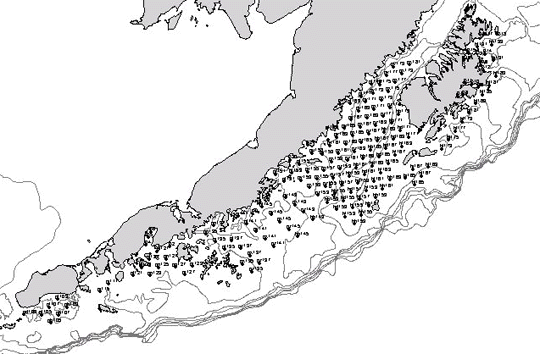

1. Map of icthyoplankton grid sampling stations.

2. Listing of potential ichthyoplankton grid station positions during MF00-08. Likely stations shown in bold type.

x y lat.dd long.dd lat-deg lat-min long-deg long-min xy

gd 101 54.16076 -164.907 54 9.6456 164 54.408 gd101

gd 103 54.28172 -164.711 54 16.9032 164 42.63 gd103

gf 101 54.04598 -164.661 54 2.7588 164 39.636 gf101

gf 103 54.16693 -164.465 54 10.0158 164 27.888 gf103

gf 105 54.28789 -164.268 54 17.2734 164 16.104 gf105

gf 107 54.40885 -164.072 54 24.531 164 4.29 gf107

gf 109 54.5298 -163.874 54 31.788 163 52.44 gf109

gh 103 54.05215 -164.22 54 3.129 164 13.194 gh103

gh 105 54.17311 -164.024 54 10.3866 164 1.446 gh105

gh 107 54.29406 -163.828 54 17.6436 163 49.662 gh107

gh 109 54.41502 -163.631 54 24.9012 163 37.842 gh109

gh 111 54.53598 -163.433 54 32.1588 163 25.992 gh111

gj 105 54.05832 -163.781 54 3.4992 163 46.836 gj105

gj 107 54.17928 -163.585 54 10.7568 163 35.088 gj107

gj 109 54.30024 -163.388 54 18.0144 163 23.304 gj109

gj 111 54.42119 -163.191 54 25.2714 163 11.484 gj111

gj 113 54.54215 -162.994 54 32.529 162 59.628 gj113

gj 115 54.66311 -162.796 54 39.7866 162 47.742 gj115

gj 117 54.78406 -162.597 54 47.0436 162 35.814 gj117

gj 119 54.90502 -162.398 54 54.3012 162 23.85 gj119

gl 107 54.0645 -163.343 54 3.87 163 20.562 gl107

gl 109 54.18545 -163.147 54 11.127 163 8.808 gl109

gl 111 54.30641 -162.95 54 18.3846 162 57.024 gl111

gl 115 54.54832 -162.556 54 32.8992 162 33.348 gl115

gl 117 54.66928 -162.358 54 40.1568 162 21.456 gl117

gl 119 54.79023 -162.159 54 47.4138 162 9.528 gl119

gl 121 54.91119 -161.959 54 54.6714 161 57.564 gl121

gl 123 55.03215 -161.759 55 1.929 161 45.564 gl123

gl 125 55.1531 -161.559 55 9.186 161 33.528 gl125

gl 127 55.27406 -161.358 55 16.4436 161 21.456 gl127

gn 109 54.07067 -162.906 54 4.2402 162 54.366 gn109

gn 111 54.19162 -162.71 54 11.4972 162 42.612 gn111

gn 113 54.31258 -162.514 54 18.7548 162 30.822 gn113

gn 115 54.43354 -162.317 54 26.0124 162 19.002 gn115

gn 117 54.55449 -162.119 54 33.2694 162 7.14 gn117

gn 119 54.67545 -161.921 54 40.527 161 55.248 gn119

gn 121 54.79641 -161.722 54 47.7846 161 43.32 gn121

gn 123 54.91736 -161.523 54 55.0416 161 31.356 gn123

gn 125 55.03832 -161.323 55 2.2992 161 19.356 gn125

gn 127 55.15928 -161.122 55 9.5568 161 7.314 gn127

gn 129 55.28023 -160.921 55 16.8138 160 55.242 gn129

gp 123 54.80258 -161.287 54 48.1548 161 17.19 gp123

gp 125 54.92353 -161.087 54 55.4118 161 5.226 gp125

gp 127 55.04449 -160.887 55 2.6694 160 53.22 gp127

gp 135 55.52832 -160.081 55 31.6992 160 4.848 gp135

gp 137 55.64927 -159.878 55 38.9562 159 52.662 gp137

gr 113 54.08301 -162.037 54 4.9806 162 2.214 gr113

gr 115 54.20397 -161.841 54 12.2382 161 50.454 gr115

gr 117 54.32492 -161.644 54 19.4952 161 38.664 gr117

gr 119 54.44588 -161.447 54 26.7528 161 26.838 gr119

gr 121 54.56684 -161.25 54 34.0104 161 14.976 gr121

gr 123 54.68779 -161.051 54 41.2674 161 3.078 gr123

gr 125 54.80875 -160.852 54 48.525 160 51.144 gr125

gr 127 54.92971 -160.653 54 55.7826 160 39.174 gr127

gr 129 55.05066 -160.453 55 3.0396 160 27.174 gr129

gr 131 55.17162 -160.252 55 10.2972 160 15.132 gr131

gr 133 55.29258 -160.051 55 17.5548 160 3.054 gr133

gr 135 55.41353 -159.849 55 24.8118 159 50.94 gr135

gr 141 55.7764 -159.24 55 46.584 159 14.37 gr141

gr 151 56.38118 -158.211 56 22.8708 158 12.666 gr151

gt 115 54.08918 -161.604 54 5.3508 161 36.258 gt115

gt 117 54.21014 -161.408 54 12.6084 161 24.498 gt117

gt 119 54.3311 -161.212 54 19.866 161 12.702 gt119

gt 121 54.45205 -161.015 54 27.123 161 0.876 gt121

gt 123 54.57301 -160.817 54 34.3806 160 49.008 gt123

gt 125 54.69397 -160.619 54 41.6382 160 37.11 gt125

gt 127 54.81492 -160.42 54 48.8952 160 25.176 gt127

gt 129 54.93588 -160.22 54 56.1528 160 13.206 gt129

gt 135 55.29875 -159.618 55 17.925 159 37.08 gt135

gt 137 55.4197 -159.416 55 25.182 159 24.96 gt137

gt 139 55.54066 -159.214 55 32.4396 159 12.81 gt139

gt 141 55.66162 -159.01 55 39.6972 159 0.618 gt141

gt 145 55.90353 -158.602 55 54.2118 158 36.126 gt145

gt 151 56.2664 -157.985 56 15.984 157 59.094 gt151

gt 153 56.38736 -157.778 56 23.2416 157 46.674 gt153

gt 155 56.50831 -157.57 56 30.4986 157 34.212 gt155

gt 163 56.85 -156.75 56 51 156 45 gt163

gt 169 57.35501 -156.098 57 21.3006 156 5.85 gt169

gt 171 57.45 -155.767 57 27 155 46 gt171

gt 173 57.6167 -155.467 57 37 155 28 gt173

gt 197 59.0484 -153.047 59 2.904 153 2.826 gt197

gt 199 59.16935 -152.824 59 10.161 152 49.41 gt199

gt 201 59.29031 -152.599 59 17.4186 152 35.952 gt201

gt 203 59.41127 -152.374 59 24.6762 152 22.44 gt203

gt 205 59.53222 -152.148 59 31.9332 152 8.88 gt205

gt 207 59.65318 -151.921 59 39.1908 151 55.272 gt207

gu 158 56.6667 -157.217 56 40 157 13 gu158

gv 117 54.09536 -161.173 54 5.7216 161 10.374 gv117

gv 119 54.21631 -160.977 54 12.9786 160 58.614 gv119

gv 121 54.33727 -160.78 54 20.2362 160 46.818 gv121

gv 123 54.45823 -160.583 54 27.4938 160 34.986 gv123

gv 125 54.57918 -160.385 54 34.7508 160 23.124 gv125

gv 127 54.70014 -160.187 54 42.0084 160 11.22 gv127

gv 129 54.82109 -159.988 54 49.2654 159 59.286 gv129

gv 131 54.94205 -159.789 54 56.523 159 47.316 gv131

gv 137 55.30492 -159.186 55 18.2952 159 11.178 gv137

gv 139 55.42588 -158.984 55 25.5528 158 59.064 gv139

gv 141 55.54683 -158.782 55 32.8098 158 46.908 gv141

gv 143 55.66779 -158.579 55 40.0674 158 34.716 gv143

gv 145 55.78875 -158.375 55 47.325 158 22.482 gv145

gv 147 55.9097 -158.17 55 54.582 158 10.212 gv147

gv 149 56.03066 -157.965 56 1.8396 157 57.906 gv149

gv 151 56.15162 -157.759 56 9.0972 157 45.564 gv151

gv 153 56.27257 -157.553 56 16.3542 157 33.18 gv153

gv 155 56.39353 -157.346 56 23.6118 157 20.754 gv155

gv 159 56.63544 -156.93 56 38.1264 156 55.788 gv159

gv 161 56.7564 -156.721 56 45.384 156 43.248 gv161

gv 163 56.87735 -156.511 56 52.641 156 30.666 gv163

gv 165 56.99831 -156.301 56 59.8986 156 18.042 gv165

gv 167 57.11927 -156.09 57 7.1562 156 5.376 gv167

gv 169 57.24022 -155.878 57 14.4132 155 52.668 gv169

gv 171 57.36118 -155.665 57 21.6708 155 39.918 gv171

gv 173 57.48214 -155.452 57 28.9284 155 27.126 gv173

gv 175 57.60309 -155.238 57 36.1854 155 14.298 gv175

gv 177 57.72405 -155.024 57 43.443 155 1.422 gv177

gv 179 57.84501 -154.808 57 50.7006 154 48.498 gv179

gv 189 58.44979 -153.721 58 26.9874 153 43.248 gv189

gv 191 58.57074 -153.501 58 34.2444 153 30.066 gv191

gv 193 58.6917 -153.281 58 41.502 153 16.83 gv193

gv 195 58.81266 -153.059 58 48.7596 153 3.558 gv195

gv 197 58.93361 -152.837 58 56.0166 152 50.232 gv197

gv 199 59.05457 -152.614 59 3.2742 152 36.864 gv199

gv 201 59.17553 -152.391 59 10.5318 152 23.448 gv201

gv 203 59.29648 -152.166 59 17.7888 152 9.984 gv203

gv 205 59.41744 -151.941 59 25.0464 151 56.472 gv205

gv 207 59.53839 -151.715 59 32.3034 151 42.906 gv207

gx 119 54.10153 -160.743 54 6.0918 160 44.574 gx119

gx 121 54.22248 -160.547 54 13.3488 160 32.808 gx121

gx 123 54.34344 -160.35 54 20.6064 160 21.012 gx123

gx 125 54.4644 -160.153 54 27.864 160 9.18 gx125

gx 127 54.58535 -159.955 54 35.121 159 57.312 gx127

gx 129 54.70631 -159.757 54 42.3786 159 45.408 gx129

gx 131 54.82727 -159.558 54 49.6362 159 33.474 gx131

gx 135 55.06918 -159.158 55 4.1508 159 9.486 gx135

gx 137 55.19014 -158.957 55 11.4084 158 57.444 gx137

gx 139 55.31109 -158.756 55 18.6654 158 45.36 gx139

gx 141 55.43205 -158.554 55 25.923 158 33.24 gx141

gx 143 55.55301 -158.351 55 33.1806 158 21.078 gx143

gx 145 55.67396 -158.148 55 40.4376 158 8.886 gx145

gx 147 55.79492 -157.944 55 47.6952 157 56.652 gx147

gx 149 55.91587 -157.74 55 54.9522 157 44.382 gx149

gx 151 56.03683 -157.535 56 2.2098 157 32.076 gx151

gx 153 56.15779 -157.329 56 9.4674 157 19.728 gx153

gx 155 56.27874 -157.122 56 16.7244 157 7.344 gx155

gx 157 56.3997 -156.915 56 23.982 156 54.918 gx157

gx 159 56.52066 -156.708 56 31.2396 156 42.45 gx159

gx 161 56.64161 -156.499 56 38.4966 156 29.946 gx161

gx 163 56.76257 -156.29 56 45.7542 156 17.4 gx163

gx 165 56.88353 -156.08 56 53.0118 156 4.818 gx165

gx 167 57.00448 -155.87 57 0.2688 155 52.188 gx167

gx 169 57.12544 -155.659 57 7.5264 155 39.522 gx169

gx 171 57.2464 -155.447 57 14.784 155 26.814 gx171

gx 173 57.36735 -155.234 57 22.041 155 14.064 gx173

gx 175 57.48831 -155.021 57 29.2986 155 1.272 gx175

gx 177 57.60926 -154.807 57 36.5556 154 48.438 gx177

gx 179 57.73022 -154.593 57 43.8132 154 35.562 gx179

gx 181 57.85118 -154.377 57 51.0708 154 22.638 gx181

gx 183 57.97213 -154.161 57 58.3278 154 9.672 gx183

gx 185 58.09309 -153.944 58 5.5854 153 56.664 gx185

gx 187 58.21405 -153.727 58 12.843 153 43.614 gx187

gx 189 58.335 -153.509 58 20.1 153 30.516 gx189

gx 191 58.45596 -153.29 58 27.3576 153 17.37 gx191

gx 193 58.57692 -153.07 58 34.6152 153 4.182 gx193

gx 195 58.69787 -152.849 58 41.8722 152 50.952 gx195

gx 197 58.81883 -152.628 58 49.1298 152 37.674 gx197

gx 199 58.93979 -152.406 58 56.3874 152 24.348 gx199

gx 201 59.06074 -152.183 59 3.6444 152 10.974 gx201

gx 203 59.1817 -151.959 59 10.902 151 57.558 gx203

gz 121 54.1077 -160.314 54 6.462 160 18.846 gz121

gz 123 54.22866 -160.118 54 13.7196 160 7.08 gz123

gz 125 54.34961 -159.921 54 20.9766 159 55.284 gz125

gz 127 54.47057 -159.724 54 28.2342 159 43.446 gz127

gz 129 54.59153 -159.526 54 35.4918 159 31.578 gz129

gz 131 54.71248 -159.328 54 42.7488 159 19.674 gz131

gz 133 54.83344 -159.129 54 50.0064 159 7.734 gz133

gz 135 54.9544 -158.929 54 57.264 158 55.758 gz135

gz 137 55.07535 -158.729 55 4.521 158 43.746 gz137

gz 139 55.19631 -158.528 55 11.7786 158 31.698 gz139

gz 141 55.31726 -158.327 55 19.0356 158 19.614 gz141

gz 143 55.43822 -158.125 55 26.2932 158 7.494 gz143

gz 145 55.55918 -157.922 55 33.5508 157 55.332 gz145

gz 147 55.68013 -157.719 55 40.8078 157 43.134 gz147

gz 149 55.80109 -157.515 55 48.0654 157 30.9 gz149

gz 151 55.92205 -157.311 55 55.323 157 18.63 gz151

gz 153 56.043 -157.105 56 2.58 157 6.318 gz153

gz 155 56.16396 -156.9 56 9.8376 156 53.97 gz155

gz 157 56.28492 -156.693 56 17.0952 156 41.58 gz157

gz 159 56.40587 -156.486 56 24.3522 156 29.154 gz159

gz 161 56.52683 -156.278 56 31.6098 156 16.686 gz161

gz 163 56.64779 -156.07 56 38.8674 156 4.182 gz163

gz 165 56.76874 -155.861 56 46.1244 155 51.636 gz165

gz 167 56.8897 -155.651 56 53.382 155 39.048 gz167

gz 169 57.01065 -155.44 57 0.639 155 26.418 gz169

gz 171 57.13161 -155.229 57 7.8966 155 13.746 gz171

gz 173 57.25257 -155.017 57 15.1542 155 1.038 gz173

gz 175 57.37352 -154.805 57 22.4112 154 48.282 gz175

gz 177 57.49448 -154.592 57 29.6688 154 35.49 gz177

gz 179 57.61544 -154.378 57 36.9264 154 22.65 gz179

gz 181 57.73639 -154.163 57 44.1834 154 9.774 gz181

gz 183 57.85735 -153.948 57 51.441 153 56.85 gz183

gz 185 57.97831 -153.731 57 58.6986 153 43.884 gz185

gz 187 58.09926 -153.515 58 5.9556 153 30.87 gz187

gz 189 58.22022 -153.297 58 13.2132 153 17.82 gz189

gz 191 58.34118 -153.079 58 20.4708 153 4.716 gz191

gz 193 58.46213 -152.86 58 27.7278 152 51.576 gz193

gz 195 58.58309 -152.64 58 34.9854 152 38.382 gz195

gz 197 58.70404 -152.419 58 42.2424 152 25.146 gz197

gz 199 58.825 -152.198 58 49.5 152 11.868 gz199

gz 203 59.06691 -151.753 59 4.0146 151 45.162 gz203

hb 135 54.83961 -158.701 54 50.3766 158 42.072 hb135

hb 137 54.96057 -158.502 54 57.6342 158 30.096 hb137

hb 139 55.08152 -158.301 55 4.8912 158 18.084 hb139

hb 141 55.20248 -158.101 55 12.1488 158 6.036 hb141

hb 143 55.32344 -157.899 55 19.4064 157 53.946 hb143

hb 145 55.44439 -157.697 55 26.6634 157 41.826 hb145

hb 147 55.56535 -157.494 55 33.921 157 29.664 hb147

hb 149 55.68631 -157.291 55 41.1786 157 17.466 hb149

hb 151 55.80726 -157.087 55 48.4356 157 5.226 hb151

hb 153 55.92822 -156.883 55 55.6932 156 52.956 hb153

hb 155 56.04918 -156.677 56 2.9508 156 40.638 hb155

hb 157 56.17013 -156.472 56 10.2078 156 28.29 hb157

hb 159 56.29109 -156.265 56 17.4654 156 15.9 hb159

hb 161 56.41204 -156.058 56 24.7224 156 3.468 hb161

hb 163 56.533 -155.85 56 31.98 155 51 hb163

hb 165 56.65396 -155.642 56 39.2376 155 38.49 hb165

hb 167 56.77491 -155.432 56 46.4946 155 25.944 hb167

hb 169 56.89587 -155.223 56 53.7522 155 13.35 hb169

hb 171 57.01683 -155.012 57 1.0098 155 0.72 hb171

hb 173 57.13778 -154.801 57 8.2668 154 48.048 hb173

hb 187 57.98448 -153.303 57 59.0688 153 18.168 hb187

hb 199 58.71022 -151.99 58 42.6132 151 59.418 hb199

hb 201 58.83117 -151.769 58 49.8702 151 46.134 hb201

hb 203 58.95213 -151.547 58 57.1278 151 32.808 hb203

hb 205 59.07309 -151.324 59 4.3854 151 19.428 hb205

hd 143 55.20865 -157.674 55 12.519 157 40.44 hd143

hd 145 55.32961 -157.473 55 19.7766 157 28.356 hd145

hd 147 55.45057 -157.271 55 27.0342 157 16.23 hd147

hd 149 55.57152 -157.068 55 34.2912 157 4.068 hd149

hd 151 55.69248 -156.864 55 41.5488 156 51.864 hd151

hd 153 55.81343 -156.661 55 48.8058 156 39.63 hd153

hd 155 55.93439 -156.456 55 56.0634 156 27.354 hd155

hd 157 56.05535 -156.251 56 3.321 156 15.036 hd157

hd 159 56.1763 -156.045 56 10.578 156 2.682 hd159

hd 161 56.29726 -155.838 56 17.8356 155 50.292 hd161

hd 163 56.41822 -155.631 56 25.0932 155 37.86 hd163

hd 165 56.53917 -155.423 56 32.3502 155 25.386 hd165

hd 167 56.66013 -155.215 56 39.6078 155 12.876 hd167

hd 169 56.78109 -155.005 56 46.8654 155 0.324 hd169

hd 171 56.90204 -154.796 56 54.1224 154 47.736 hd171

hd 173 57.023 -154.585 57 1.38 154 35.106 hd173

hd 197 58.47448 -152.003 58 28.4688 152 0.204 hd197

hd 199 58.59543 -151.784 58 35.7258 151 47.01 hd199

hd 201 58.71639 -151.563 58 42.9834 151 33.774 hd201

hd 203 58.83735 -151.341 58 50.241 151 20.484 hd203

hd 205 58.9583 -151.119 58 57.498 151 7.152 hd205

hd 207 59.07926 -150.896 59 4.7556 150 53.772 hd207

hf 143 55.09387 -157.45 55 5.6322 157 26.982 hf143

hf 145 55.21482 -157.249 55 12.8892 157 14.928 hf145

hf 147 55.33578 -157.047 55 20.1468 157 2.838 hf147

hf 149 55.45674 -156.845 55 27.4044 156 50.712 hf149

hf 151 55.57769 -156.642 55 34.6614 156 38.544 hf151

hf 153 55.69865 -156.439 55 41.919 156 26.34 hf153

hf 155 55.81961 -156.235 55 49.1766 156 14.1 hf155

hf 157 55.94056 -156.03 55 56.4336 156 1.824 hf157

hf 159 56.06152 -155.825 56 3.6912 155 49.506 hf159

hf 161 56.18248 -155.619 56 10.9488 155 37.152 hf161

hf 163 56.30343 -155.413 56 18.2058 155 24.756 hf163

hf 165 56.42439 -155.205 56 25.4634 155 12.324 hf165

hf 167 56.54535 -154.998 56 32.721 154 59.85 hf167

hf 169 56.6663 -154.789 56 39.978 154 47.34 hf169

hf 171 56.78726 -154.58 56 47.2356 154 34.788 hf171

hf 173 56.90821 -154.37 56 54.4926 154 22.194 hf173

hf 191 57.99682 -152.45 57 59.8092 152 26.97 hf191

hf 197 58.35969 -151.796 58 21.5814 151 47.784 hf197

hf 199 58.48065 -151.577 58 28.839 151 34.632 hf199

hf 201 58.6016 -151.357 58 36.096 151 21.438 hf201

hf 203 58.72256 -151.137 58 43.3536 151 8.196 hf203

hf 205 58.84352 -150.915 58 50.6112 150 54.906 hf205

hf 207 58.96447 -150.693 58 57.8682 150 41.574 hf207

hf 209 59.08543 -150.47 59 5.1258 150 28.194 hf209

hf 211 59.20639 -150.246 59 12.3834 150 14.76 hf211

hf 213 59.32734 -150.021 59 19.6404 150 1.284 hf213

hf 215 59.4483 -149.796 59 26.898 149 47.76 hf215

hh 143 54.97908 -157.226 54 58.7448 157 13.56 hh143

hh 145 55.10004 -157.026 55 6.0024 157 1.542 hh145

hh 147 55.221 -156.825 55 13.26 156 49.488 hh147

hh 149 55.34195 -156.623 55 20.517 156 37.392 hh149

hh 151 55.46291 -156.421 55 27.7746 156 25.266 hh151

hh 153 55.58387 -156.218 55 35.0322 156 13.098 hh153

hh 155 55.70482 -156.015 55 42.2892 156 0.894 hh155

hh 157 55.82578 -155.811 55 49.5468 155 48.654 hh157

hh 159 55.94674 -155.606 55 56.8044 155 36.372 hh159

hh 161 56.06769 -155.401 56 4.0614 155 24.054 hh161

hh 163 56.18865 -155.195 56 11.319 155 11.694 hh163

hh 165 56.3096 -154.988 56 18.576 154 59.298 hh165

hh 171 56.67247 -154.365 56 40.3482 154 21.876 hh171

hh 173 56.79343 -154.155 56 47.6058 154 9.318 hh173

hh 175 56.91439 -153.945 56 54.8634 153 56.724 hh175

hh 193 58.00299 -152.025 58 0.1794 152 1.482 hh193

hh 195 58.12395 -151.808 58 7.437 151 48.462 hh195

hh 197 58.24491 -151.59 58 14.6946 151 35.4 hh197

hh 199 58.36586 -151.372 58 21.9516 151 22.29 hh199

hh 201 58.48682 -151.152 58 29.2092 151 9.138 hh201

hh 203 58.60778 -150.932 58 36.4668 150 55.938 hh203

hh 205 58.72873 -150.712 58 43.7238 150 42.69 hh205

hh 207 58.84969 -150.49 58 50.9814 150 29.4 hh207

hh 209 58.97065 -150.268 58 58.239 150 16.062 hh209

hh 211 59.0916 -150.045 59 5.496 150 2.682 hh211

hh 213 59.21256 -149.821 59 12.7536 149 49.248 hh213

hj 143 54.8643 -157.003 54 51.858 157 0.186 hj143

hj 145 54.98526 -156.803 54 59.1156 156 48.198 hj145

hj 147 55.10621 -156.603 55 6.3726 156 36.18 hj147

hj 149 55.22717 -156.402 55 13.6302 156 24.12 hj149

hj 151 55.34813 -156.2 55 20.8878 156 12.024 hj151

hj 153 55.46908 -155.998 55 28.1448 155 59.892 hj153

hj 155 55.59004 -155.795 55 35.4024 155 47.724 hj155

hj 157 55.71099 -155.592 55 42.6594 155 35.52 hj157

hj 159 55.83195 -155.388 55 49.917 155 23.274 hj159

hj 161 55.95291 -155.183 55 57.1746 155 10.992 hj161

hj 163 56.07386 -154.978 56 4.4316 154 58.674 hj163

hj 165 56.19482 -154.772 56 11.6892 154 46.314 hj165

hj 167 56.31578 -154.565 56 18.9468 154 33.918 hj167

hj 169 56.43673 -154.358 56 26.2038 154 21.48 hj169

hj 173 56.67865 -153.941 56 40.719 153 56.484 hj173

hj 191 57.76725 -152.033 57 46.035 152 1.98 hj191

hj 193 57.88821 -151.818 57 53.2926 151 49.05 hj193

hj 195 58.00917 -151.601 58 0.5502 151 36.072 hj195

hj 197 58.13012 -151.384 58 7.8072 151 23.046 hj197

hj 199 58.25108 -151.166 58 15.0648 151 9.984 hj199

hj 201 58.37204 -150.948 58 22.3224 150 56.874 hj201

hj 203 58.49299 -150.729 58 29.5794 150 43.716 hj203

hj 205 58.61395 -150.509 58 36.837 150 30.516 hj205

hj 207 58.73491 -150.288 58 44.0946 150 17.268 hj207

hj 209 58.85586 -150.066 58 51.3516 150 3.972 hj209

hj 211 58.97682 -149.844 58 58.6092 149 50.634 hj211

hj 213 59.09777 -149.621 59 5.8662 149 37.248 hj213

hl 165 56.08004 -154.556 56 4.8024 154 33.366 hl165

hl 167 56.20099 -154.35 56 12.0594 154 21.006 hl167

hl 169 56.32195 -154.143 56 19.317 154 8.604 hl169

hl 173 56.56386 -153.728 56 33.8316 153 43.686 hl173

hl 175 56.68482 -153.52 56 41.0892 153 31.17 hl175

hl 177 56.80577 -153.31 56 48.3462 153 18.612 hl177

hl 179 56.92673 -153.1 56 55.6038 153 6.012 hl179

hl 181 57.04769 -152.89 57 2.8614 152 53.37 hl181

hl 183 57.16864 -152.678 57 10.1184 152 40.686 hl183

hl 185 57.2896 -152.466 57 17.376 152 27.96 hl185

hl 187 57.41056 -152.253 57 24.6336 152 15.198 hl187

hl 189 57.53151 -152.04 57 31.8906 152 2.388 hl189

hl 191 57.65247 -151.826 57 39.1482 151 49.542 hl191

hl 193 57.77343 -151.611 57 46.4058 151 36.648 hl193

hl 195 57.89438 -151.395 57 53.6628 151 23.712 hl195

hl 197 58.01534 -151.179 58 0.9204 151 10.728 hl197

hl 199 58.1363 -150.962 58 8.178 150 57.702 hl199

hl 201 58.25725 -150.744 58 15.435 150 44.634 hl201

hl 203 58.37821 -150.525 58 22.6926 150 31.524 hl203

hl 205 58.49916 -150.306 58 29.9496 150 18.366 hl205

hl 207 58.62012 -150.086 58 37.2072 150 5.16 hl207

hl 209 58.74108 -149.865 58 44.4648 149 51.912 hl209

hl 211 58.86203 -149.644 58 51.7218 149 38.616 hl211

hl 213 58.98299 -149.421 58 58.9794 149 25.272 hl213

hn 171 56.32812 -153.723 56 19.6872 153 43.368 hn171

hn 173 56.44908 -153.516 56 26.9448 153 30.93 hn173

hn 175 56.57003 -153.308 56 34.2018 153 18.45 hn175

hn 177 56.69099 -153.099 56 41.4594 153 5.928 hn177

hn 179 56.81195 -152.889 56 48.717 152 53.364 hn179

hn 181 56.9329 -152.679 56 55.974 152 40.764 hn181

hn 183 57.05386 -152.469 57 3.2316 152 28.122 hn183

hn 185 57.17482 -152.257 57 10.4892 152 15.438 hn185

hn 187 57.29577 -152.045 57 17.7462 152 2.712 hn187

hn 189 57.41673 -151.832 57 25.0038 151 49.944 hn189

hn 191 57.53769 -151.619 57 32.2614 151 37.134 hn191

hn 193 57.65864 -151.405 57 39.5184 151 24.282 hn193

hn 195 57.7796 -151.19 57 46.776 151 11.382 hn195

hn 197 57.90055 -150.974 57 54.033 150 58.446 hn197

hn 199 58.02151 -150.758 58 1.2906 150 45.462 hn199

hn 201 58.14247 -150.541 58 8.5482 150 32.436 hn201

hn 203 58.26342 -150.323 58 15.8052 150 19.368 hn203

hn 205 58.38438 -150.104 58 23.0628 150 6.252 hn205

hn 207 58.50534 -149.885 58 30.3204 149 53.088 hn207

hn 209 58.62629 -149.665 58 37.5774 149 39.882 hn209

hn 211 58.74725 -149.444 58 44.835 149 26.634 hn211

hn 213 58.86821 -149.222 58 52.0926 149 13.338 hn213

B2 55.345 -161.036 55 20.7 161 2.16 B2

B4 55.363 -161.639 55 21.78 161 38.34 B4

B5 55.476 -161.588 55 28.56 161 35.28 B5

B6 55.559 -161.523 55 33.54 161 31.38 B6

B7 57.308 -153.132 57 18.48 153 7.92 B7

B8 57.316 -153.001 57 18.96 153 0.06 B8

B9 57.404 -152.561 57 24.24 152 33.66 B9

B10 57.457 -152.723 57 27.42 152 43.38 B10

B11 57.486 -152.881 57 29.16 152 52.86 B11

B12 57.646 -152.362 57 38.76 152 21.72 B12

B13 57.724 -152.419 57 43.44 152 25.14 B13

B14 57.875 -152.262 57 52.5 152 15.72 B14

B15 57.92 -152.689 57 55.2 152 41.34 B15

B16 57.825 -152.854 57 49.5 152 51.24 B16

B17 58.159 -152.237 58 9.54 152 14.22 B17

B18 58.152 -151.857 58 9.12 151 51.42 B18

B19 57.358 -156.367 57 21.5 156 22 B19 Wide bay

B20 56.583 -157.8 56 35 157 48 B20 Kiyulik bay

B21 56.783 -157.317 56 47 157 19 B21 Amber Bay

3. Close-up view of Phase 1 stations.

4. Close-up view of Phase 2 stations.

5. Map of line 8 station positions.

6. Listing of line 8 station positions and activities.

Station LatDDeg LongDDeg LatDeg LatMin LongDeg LongMin CTDB Chloro-
phyll Nutrients Micro-
zooplankton 20/60Bon3

FOX61 57.72 -155.26 57 43.2 155 15.6 x x x x x

FOX60 57.68 -155.17 57 41.0 155 10,0 x x x x x

FOX59 57.64 -155.07 57 38.5 155 04.2 x x x x x

FOX58 57.61 -155.01 57 36.3 155 00.5 x x x x x

FOX57 57.55 -154.88 57 33.1 154 52.5 x x x x x

FOX56 57.52 -154.78 57 30.9 154 47.0 x x x x x

FOX55 57.48 -154.7 57 28.5 154 42.0 x x x x x

7. Close-up view of Phase 3 stations.

8. Close-up view of Phase 5 stations.

Fisheries-Oceanography Coordinated Investigations

NOAA | Pacific Marine Environmental Laboratory | Alaska Fisheries Science Center

Seattle, WA 98115
FOCI Coordinator

Disclaimer | Privacy Policy
