Date: 30 July, 1999
FINAL CRUISE INSTRUCTIONS
NOAA Ship MILLER FREEMAN
Cruise No.: MF-99-11
FOCI No.: 7MF99
Applicability:
These instructions, with FOCI
Standard Operating Instructions (SOI) for NOAA Ship MILLER FREEMAN, 22
March 1999, present complete information for this cruise.
Area:
Southeast Bering Sea
Itinerary:
Depart September 2 — Dutch Harbor
TNG September 5 — Dutch Harbor
Arrive September 19 — Dutch Harbor
Participating organizations:
AFSC - Alaska Fisheries Science Center (NOAA)
PMEL — Pacific Marine Environmental Laboratory (NOAA)
UAF — University of Alaska, Fairbanks
UCI — University of California, Irvine
UW — University of Washington
PMC — Pacific Marine Center (NOAA)
Cruise description:
Fisheries Oceanography Coordinated Investigations (FOCI) is an effort
by academic and federal scientists to understand ecosystems and biological
and physical processes that cause recruitment variability of commercially
valuable fish and shellfish stocks in Alaskan waters. FOCI is comprised
of Shelikof Strait FOCI and Southeast Bering Sea Carrying Capacity (SEBSCC).
Current research is focused on the western Gulf of Alaska and the southeastern
Bering Sea to examine the affects of the biotic and abiotic environment
on the ecosystem and the early life stages of walleye pollock. FOCI uses
four scientific approaches: environmental monitoring, process studies,
retrospective analyses, and modeling. Research cruises address the first
two approaches.
Cruise objectives:
1) Continue acquisition of long-term biological and physical time series.
2) Conduct acoustic and trawl survey of juvenile walleye pollock for
examining distributions in relation to hydrographic fronts.
3) Compare multiple frequency acoustic systems and their use in examining
zooplankton and juvenile pollock spatial patterns.
4) Collect samples of juvenile pollock for studies of growth, feeding,
pathology, and condition.
5) Examine distribution and nutrition of pollock prey in relation to
hydrographic fronts and vertical distribution of juvenile pollock.
6) Examine distribution and feeding of seabird and marine mammal predators
in the vicinity of the Pribilof Islands.
1.0. PERSONNEL
1.1. Chief Scientist
The Chief Scientist has the authority to revise or alter the technical
portion of the instructions as work progresses provided that, after consultation
with the Commanding Officer, it is ascertained that the proposed changes
will not: (1) jeopardize the safety of personnel or the ship; (2) exceed
the overall time allotted for the project; (3) result in undue additional
expenses; (4) alter the general intent of these project instructions.
1.2. Participating Scientists
September 2-19:
| Lorenzo Ciannelli |
M/USA |
UW |
| Jay Clark |
M/USA |
AFSC |
| Jeff Napp |
M/USA |
AFSC |
| Loren Tuttle |
M/USA |
AFSC |
| Sigrid Salo |
F/USA |
PMEL |
September 5-19:
| Morgan Busby |
M/USA |
AFSC |
| Ken Coyle |
M/USA |
UAF |
| Frank Morado |
M/USA |
AFSC |
| Mary Ngo |
F/USA |
UCI |
| Gordie Swartzman |
M/USA |
UW |
| Lucy Vlietstra |
F/USA |
UCI |
1.3 NOAA Pacific Marine Center Operations Contact:
Larry Mordock
NOAA/PMC (PMC1x4)
1801 Fairview Ave. East
Seattle, WA 98102-3767
(206) 553 - 4764
Larry.Mordock@noaa.gov
1.4 Program Contacts:
Dr. Phyllis Stabeno
PMEL
7600 Sand Point Way NE
Seattle, WA 98115
(206) 526-6453
Phyllis.Stabeno@noaa.gov |
Dr. Art Kendall
AFSC
7600 Sand Point Way NE
Seattle, WA 98115
(206) 526-4108
|
2.0. OPERATIONS
Scheduling of individual activities will depend upon weather conditions
and progress of scientific work, therefore, firm advance scheduling of
events will not be possible, and a continual dialogue between scientific
and ship's personnel will be especially important. To insure fulfillment
of all the scientific objectives, the ship is asked to steam at maximum
cruising speed whenever time in transit and between stations is greater
than one hour.
A standard oceanographic watch will be utilized which consists of a
winch operator, a scientific staff of at least three and a Survey Tech
on deck. Operations will be conducted 24 hours a day.
2.1. Summary of Activities
The summary below is the tentative order of execution, but this may
be changed by the Chief Scientist. Some gear, including the anchovy trawl
and doors, will be loaded onto the ship during September 1 or 2 prior to
the beginning of the cruise. On or about September 5, the Miller Freeman
must return to Dutch Harbor to pick up the remaining scientists and Ken
coyle’s HTI towed-fin acoustic system. Most of the gear will be left
aboard until the ship can be off-loaded in Seattle.
1) September 2-5, SEBSCC Monitoring:

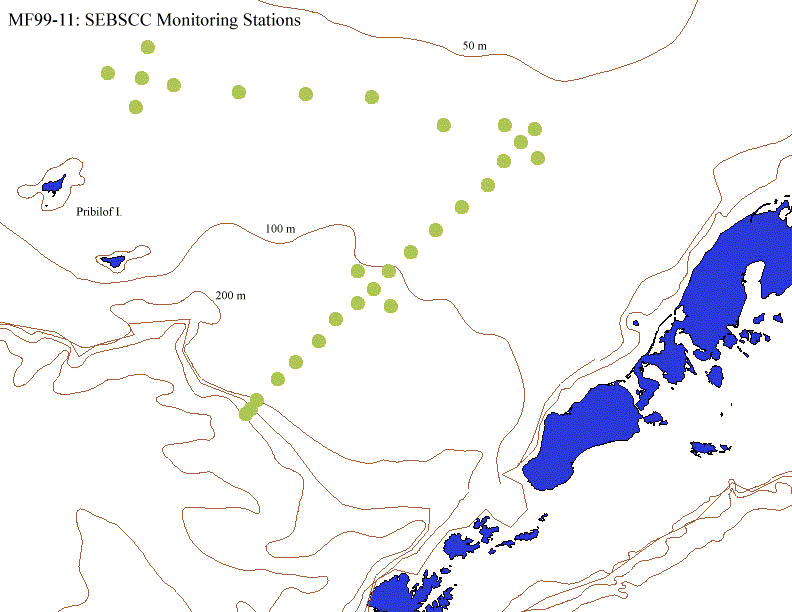

Proceed to the southwesternmost SEBSCC Monitoring station, there are
30 SEBSCC Monitoring stations (Table 1, Figure 1). Sampling at these stations
will include CTD casts for physical, chlorophyll and nutrient data; combined
20 & 60 cm bongo tows for zooplankton; and CalVET tows for microzooplankton.
This sampling will be suspended when need be to run to Dutch Harbor and
will be completed after the Juvenile Pollock Habitat work, time permitting.
2) September 5-19, Juvenile Pollock Habitat:

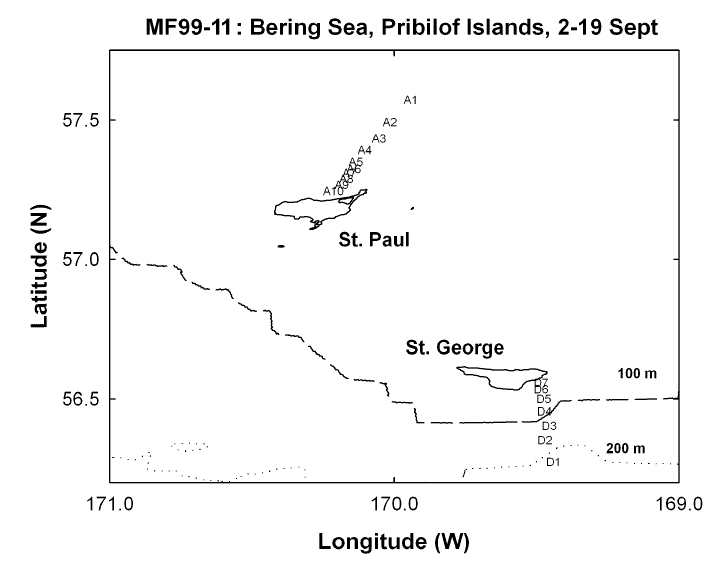

i) After the touch-and-go, proceed to the offshore end of Line D off
St. George Island (Fig. 2). Depending upon time of day, sampling will begin
either with acoustic transecting or CTD sampling. The schedule of events
listed in Table 1, after the Dutch Harbor TNG (5 Sept), will likely change
so that day or nighttime operations (see Operations, Table 1) will be conducted
during the appropriate diel period (see Day/Night, Table 1).
-Four acoustic passes will be made along this transect. One day and
one night pass will be conducted using the Simrad EK-500 system. Two more
passes will be made using Dr. Ken Coyle’s HTI towed-fin system. The
HTI fin will be towed from the starboard boom at a depth of ~3 m and ship
speed of 3-5 kts.
-One CTD cast will be made at each of the seven "D" stations.
Water bottles will be attached to the rosette for collecting nutrient,
chlorophyll and microzooplankton samples.
-Net sampling will be conducted using the MOCNESS, and the Methot and
anchovy trawls. Net sampling will occur at each of three stations selected
on the basis of thermal stratification: one inshore station (well mixed),
one middle station (partially stratified), and one outer station (stratified)
will be chosen. Two tows with each gear are planned at each of these three
stations. Again, net sampling is day/night sensitive so there will be considerable
adjustments made to the sequence of operations in Table 1. The HTI fin
will be towed off the starboard side during MOCNESS tows so that acoustic
and net sampling will be simultaneous.
-A 48-hr diel station may be scheduled at the middle station, but this
is not currently included in the current schedule (Table 1). The diel study
will be accomplished using the MOCNESS, and the Methot and anchovy trawl.
Each net will be fished once every six hours resulting in 8 samples per
gear per station.
-During the diel study, weather permitting, the rigid-hull inflatable
boat may be requested for collecting sea birds using firearms.
ii) Proceed to the inshore end of Line A off St. Paul Island (Fig. 2).
Depending upon time of day, sampling will begin either with acoustic transecting
or CTD sampling.
-Eight acoustic passes will be made along this transect. Four passes,
two at day and two at night, will be made using the Simrad EK-500 system.
Four more passes will be made using Dr. Ken Coyle’s HTI towed-fin
system.
-Initially, one CTD cast will be made at each of the ten "A"
stations. Water bottles will be attached to the rosette for collecting
nutrients, chlorophylls and microzooplankton samples. A second cast at
each station will occur nearer to the end of Line-A operations.
-A 48-hr diel study will be conducted at each of three select stations.
These stations will be selected on the basis of thermal stratification:
one inshore station (well mixed), one middle station (partially stratified),
and one outer station (stratified). As on Line D, net sampling will included
the MOCNESS, and the Methot and anchovy trawls. Again, each net will be
fished once every six hours resulting in 8 samples per gear per station.
The HTI fin will be towed off the starboard side during MOCNESS tows
so that acoustic and net sampling will be simultaneous.
-During each diel study, weather permitting, the rigid-hull inflatable
boat may be requested for collecting sea birds using firearms.
3)
A standard oceanographic watch will be utilized which consists of a
winch operator, a scientific staff of at least three and a Survey Technician
on deck. Operations will be conducted 24 hours a day. A fishing crew will
be required to assist with the MOCNESS, and the Methot, and anchovy trawls,
which may be conducted in daytime or nighttime. A Survey Technician and
winch operator will be needed for CTD operations. These will be conducted
at times to be determined by the Chief Scientist. The anchovy trawl catches
will be sorted and the taxa enumerated and weighed. Some of the juvenile
pollock will be preserved for growth, condition, and diet studies, the
rest of the catch will be discarded at sea. The MOCNESS and Methot catches
will be preserved entirely. All samples will be transported back to Seattle
aboard the Miller Freeman.
2.2. Procedures for Operations
Please refer to FOCI Standard Operating Instructions (SOI) for NOAA Ship
Miller Freeman, 1999 (3/22/99).
Relevant Sections
2.2.1 CTD/Water Operations
2.2.2 MarMAP Bongo tow
2.2.5 MOCNESS tows
2.2.6 CalCOFI Vertical Egg tow
2.2.7 Methot trawl
2.2.8 Midwater trawls
2.2.10 Chlorophyll Samples
2.2.12 EK-500
2.2.13 ADCP
2.2.14 Radiometer
3.3 Scientic Computing System
3.4 Seachest and Uncontaminated Seawater
3.0. FACILITIES AND EQUIPMENT
The following systems and their associated support services are essential
to the cruise. Sufficient consumables, back-up units, and on-site spares
and technical support must be in place to assure that operational interruptions
are minimal. All measurement instruments are expected to have current calibrations,
and all pertinent calibration information shall be included in the data
package
3.1. Equipment and Capabilities to be Provided by the Ship
CTD/rosette
Oceanographic winch with slip rings and 3-conductor cable terminated
for CTD
Sea-Bird 911 plus CTD system to be used with PMEL stand (primary system)
Sea-Bird 911 plus CTD system with stand (back up system)
(Each CTD system should include: underwater CTD, deck unit, tape recorder
weights, and pinger)
10-liter sampling bottles for use with rosette (10 plus 4 spares)
For CTD field corrections: IAPSO water and AUTOSAL salinometer
Sea-Bird SBE-19 SeaCat (backup system)
Fishing operations
Meter block for MOCNESS tows
Aft Rowe winch with single conducting wire and slip rings for MOCNESS
Electrical connection between Rowe winch and DataPlot
Stern platform should be removed and stowed prior to departure
Wire speed indicator and readout for port, starboard, Marco, and Rowe
winches
Furuno or other to indicate gear depth of midwater trawl
Aft Marco winch with cable for Methot and block
Sorting table for fish catch
Miscellaneous
For meteorological observations: 2 anemometers (one the R. M. Young
system interfaced to the SCS), calibrated air thermometer (wet-and dry-bulb)
and a calibrated barometer and/or barograph
Freezer space for storage of samples (blast and storage freezers)
Simrad EQ-50 echo sounder
JRC JFV-200R color sounder recorder
RDI ADCP with PC-compatible data acquisition computer and SyQuest or
Iomega zip drives
Bench space in DataPlot for PCs, monitor, printer and VCR to fly MOCNESS
Use of 486 PC in DataPlot for data analysis
SCS (Shipboard Computer System)
Laboratory space with exhaust hood, sink, lab tables and storage space
Sea-water hoses and nozzles to wash down nets
Adequate deck lighting for night-time operations
Navigational equipment including GPS and radar (note, GPS signal must
be split for simultaneous MOCNESS and HTI use)
Safety harnesses for working on quarterdeck and fantail
Two-channel oscilloscope, for use with the HTI acoustic system
RS-232 serial port with GPS connections (the GPS signal must be split
so that it can be used simultaneously with the HTI system and the MOCNESS),
for use with the HTI acoustic system
Computer, monitor (>17"), keyboard, mouse, for
use with the HTI acoustic system
3.2. Equipment to be Provided by the Project
CTD/rosette
PMEL PC with SEASOFT software for CTD and SeaCAT data collection and
processing
Fluorometer, light meter, and chlorophyll absorbance meter (ChlAM) to
be mounted on CTD
CTD stand modified for attachment of fluorometer
Temperature thermistors for CTDs (one for primary system, one for back
up system)
CTD rosette sampler
Simrad EK-500 acoustic system (MACE’s system)
Printer paper, cartridges (color and blk/wht)
Data storage tapes and optical disks
HTI acoustic system
Transducers, towed fin, electrical cable
Fishing operations
Anchovy midwater trawl w/ 5’x7’, steel-V, 1250 lb doors
Methot, primary and spare parts, accessories, and expendables
MOCNESS, primary and spare parts, accessories, and expendables
20 cm bongo, primary and spare parts, accessories, and expendables
60 cm bongo, primary and spare parts, accessories, and expendables
CalVET, primary and spare parts, accessories, and expendables
Sea-Bird SBE-19 SeaCat, SBE 36 deck unit, SBE Power Data Interface Module
(PDIM), and SBE 5T pump (primary system), all to be used for fishing plankton
nets
ScanMar for indicating Methot and, if need be, anchovy trawl net depth
9 flowmeters, calibration data, hardware for attaching and maintaining
them
Fish baskets, dishpans, 5-gal buckets, and wading pool
Length board and strips for adult fish
Length board for age-0 fish
Mechanical and Marel platform scales
Sieves, jar holder, funnels, squirt bottles
Haul and catch forms for anchovy trawls, and DSDB for all other operations
Jars (8 and 32 oz), closures, and labels
Scalpel and scalpel blade (for pithing gut cavity)
Preservatives and dispenser equipment
Hazardous materials spill kit
Miscellaneous
Miscellaneous bookkeeping and catch processing equipment and supplies
Scientific ultra-cold freezer
Firearms (UCI)
3.3. Scientific Computer System (SCS)
The ship's Scientific Computer System (SCS) shall operate throughout
the cruise, acquiring and logging data from navigation, meteorological,
oceanographic, and fisheries sensors. See FOCI Standard Operating Instructions
for specific requirements. Need 1 min averaged time, position, T, S, water
depth, insolation, and underway fluorescence in ASCII format.
3.4. Ultra-cold Freezer Requirements
Please refer to FOCI Standard Operating Instructions for NOAA Ship Miller
Freeman, 1999 (3/22/99).
4.0. DATA AND REPORTS
Data disposition, responsibilities and data requirements are listed
in the FOCI Standard Operating Instructions.
5.0. ADDITIONAL INVESTIGATIONS AND PROJECTS
5.1. Additional Investigations
Scientist will conduct marine bird and mammal census from flying bridge
during transects. Use of the rigid-hull inflatable boat may be requested
for collecting seabirds during diel studies. Will bring guns and ammunition
on board but will check these with the XO during the cruise. Two crew members
will be required to run the boat and help collect sea birds.
5.2. Ancillary Projects
Ancillary tasks will be accomplished in accordance with the NOAA Fleet
Standing Ancillary Instructions.
5.3. Piggyback Projects
None at this time.
6.0. MISCELLANEOUS
6.1. Hazardous Materials:
The Chief Scientist shall be responsible for complying with NC Instruction
6280A, Hazardous Waste; policy, guidance, and training, dated February
4, 1991, paragraph 7.g and paragraph 9. By federal law, the ship may not
sail without a complete inventory of MSDS, and appropriate neutralizing
agents, buffers, and/or absorbents in amounts adequate to address spills
of a size equal to the amount aboard.
The following hazardous materials will be provided and controlled by
the scientists with the Chief Scientist assuming responsibility for the
safe handling of such substances:
Formalin
Ethanol
Sodium borate
Z-fix
7.0. COMMUNICATIONS
7.1. Fax Numbers
PMEL/CARD Fax: (206) 526-6485
PMEL/ADMIN Fax: (206) 526-6815
AFSC/RACE Fax: (206) 526-6723
7.2. Comsat
a) MILLER FREEMAN COMSAT (government account numbers): These are
much cheaper than Inmarsat direct numbers and should always be used first.
800-678-0872, after voice prompt dial 330-394-113, after tone dial customer
800-678-0872, after voice prompt dial 761-267-348, after tone dial customer
PI's should establish their ID#'s with their program.
b) Inmarsat (direct numbers)
011-872-330-394-113 (voice)
011-872-761-267-348 (fax)
c) CELLULAR: 206-660-7167
KODIAK ROAMER: 907-528-7626
DUTCH HARBOR ROAMER: 907-391-7626
(First dial the roamer, wait for dial tone, then dial cellular number.)
8.0. APPENDICES
Table 1. Station locations and operations
Figure 1. SEBSCC Monitoring
station locations
Figure 2. Juvenile Habitat stations
along Line A and Line D.
|
