PURPOSE: (Short, non-technical statement on how cruise relates
to overall project)
To investigate physical, chemical and biological processes on the eastern
Bering Sea continental slope and shelf. Objectives are
1.Measure the currents (via ADCP) and water properties (via CTD) on
a few transects across the Bering Slope Current and continental shelf and
deduce the geostrophic circulation. (EDC)
2.Assess nutrient inputs and utilization by physical and biological
processes in middle shelf, shelf break, and offshore SEBSCC study areas.
An emphasis will be placed on nutrient samples (nitrate, nitrite, ammonium,
phosphate and silicate) from hydrographic and productivity casts in transects
and time series measurements at mooring sites. Additional nutrient samples
will also be analyzed for experimental samples collected by other investigators.
(TW)
3.Measure rates of total, "new" and regenerated phytoplankton
production using 13-C and 15-N tracer techniques and "diagram analysis"
of nitrate depletion to determine the proportion of total surface water
column production that is "new" and available for export from
the euphotic zone via settling to deeper waters and/or incorporation by
growth into primary, secondary and tertiary consumers. (JG)
4.Measure nutrient, chlorophyll, and zooplankton concentrations for
use as biophysical indices of the status and health of the southeastern
Bering Sea ecosystem. The variables will be measured at the SEBSCC monitoring
sites: shelf break, Outer Shelf Domain, Southeast Middle Shelf Domain,
Northwest Middle Shelf Domain and Pribilof Islands. (JN)
5.Measure the composition of lipid and carbon and nitrogen stable isotopes
in zooplankton, suspended particulate matter and surface sediment samples
to indicate the source of sinking organic matter (being collected via automated
sediment traps deployed earlier). This will provide information about the
pelagic food web. (SH)
ITINERARY:(Include station positions and route waypoints.
ATTACH PAGE SIZE CRUISE TRACK for submission with final cruise reports.)
06 May 1998 - Depart Dutch Harbor, AK
22 May 1998 - Arrive Dutch Harbor, AK
Table 1 shows a detailed itinerary.

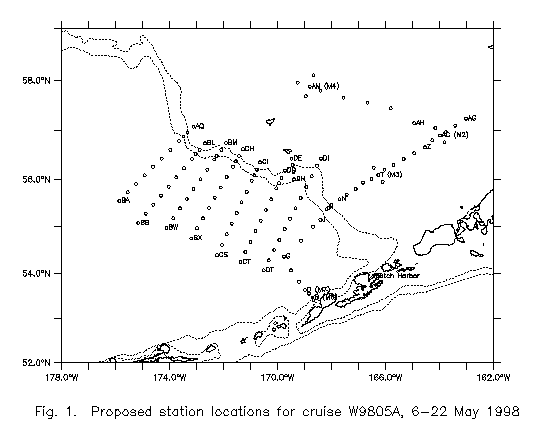

Figure
1 shows the proposed station locations.
Will radioactive methods be used? If so, list radiation use authorization
number.
No radioactive materials will be used.
Hazardous materials will be necessary for the automated nutrient analyzer
and possibly for phytoplankton samples. MSDS will be provided.
SAMPLING PLAN:
EDC:The ADCP, P-code GPS receiver, ship's gyrocompass and Ashtech 3DF
will operate during the entire cruise. Data will be recorded via RDI's
DAS and user exit UE4 and stored on compatible storage media. We will supply
appropriate DAS configuration files.
CTD casts will be conducted to the shallower of 1500 m or 10 m above the
bottom using the Sea-Bird 911 plus equipped with rosette, 10-L Niskin bottles,
fluorometer, PAR sensor and transmissometer. A PMEL Zip drive will be added
to the ship's CTD acquisition computer. CTD data will be moved to a PMEL
PC for Sea-Bird SeaSoft processing then onto a PMEL Unix workstation for
further processing, conversion to EPIC netcdf files and section plotting
via a networked PMEL PostScript printer.
TW:Nutrient samples will be collected from all CTD/rosette water sample
casts unless otherwise specified. Depending on the total water depth, 6-12
water samples will be needed to give good vertical resolution in the upper
water column (0-30 m), pycnocline (25-40 m) and sub-pycnocline (50-1000
m) in order to assess physical renewal processes and biological uptake
and regeneration. Plant pigment (Chlorophyll and HPLC) samples can be obtained
from the same sampling depths as nutrients plus at the chlorophyll maximum
as determined by the profiling fluorometer. Running seawater is required
in the ship's laboratory for calibrations and near-surface chlorophyll
fluorescence.
JG:At 2 productivity stations each day - one in early morning and one
near noon - the depths at 7 light levels in the euphotic zone will be determined
from the profiling PAR sensor or a secchi disk. Samples obtained from 5-L
or 10-L Niskin bottles in each zone will be placed in clean polycarbonate
bottles and spiked with 13-C and 15-N. Triplicate samples at each depth
will be used so that we can determine total, "new" and regenerated
production by measuring uptake of labeled carbon dioxide, nitrate, ammonium
and urea. Samples will be incubated in a deck incubator and cooled with
flowing seawater, with in situ light levels simulated using neutral density
perforated wire screens. Incubations will last about 4 hours, after which
samples will be filtered on glass fiber filters, rinsed with filtered sea
water, and frozen at -20 C for storage and transport back to the University
of Alaska mass spectrometer laboratory.
JN: Table 2 shows the sampling depths. At
all monitoring stations a CTD/rosette cast is used to collect nutrients
and chlorophyll samples. At mooring 2 (M2) the regular chloropyll water
column samples will be taken plus triplicate samples at the depths of the
bio-optical sensors (A-3, AC-9 and WetStar, Table 2). The CTD cast is followed
by a net tow using two bongo frames (20-cm frame with 150 micron mesh nets
and a 60-cm frame with 333 micron mesh nets) suspended from the same wire
and separated by approx. 1 m. A SeaCat is attached above the 20 cm frame
and a lead weight lies below the 60 cm frame. Flow meters are placed in
the mouths of each net frame. The tow cable must be at 45 degrees during
both deployment and recovery. Maximum depth for the Bongo tows is 5 m off
bottom. One side of both frames are to be immediately preserved in formalin
for quantitative analysis. The second side is available for other projects
(Henrichs, UAF). At the shelf moorings (2, 3, & 4), three replicate vertical
tows will be taken with a CalVET net (0 - 60 m). Whenever there is a question
regarding the sampling protocol, the FOCI Field Manual should be consulted.
SH:At each of the X's around sites M2, M3 and M4 (15 stations total):
In addition, as time permits we may do bongo tows, or subsample from
Napp's bongos, along the transect that connects the shelf break (about
55 o 20' N 168 o 15' W), M3 and M2. At those stations we would also collect
water samples for filtration. The specific station locations are not critical;
we would choose from among transect stations of Whitledge/Goering (not
more than 6 stations).
DH:At two stations in the Bering Sea basin dissolved organic carbon (DOC)
will be collected from Niskin bottles at 12 depths, 6 above 1000 m and
6 between 1000 m and the bottom, for example at 0, 20, 200, 400, 600, 800,
1000, 1500, 2000, 2500, 3000 and 3500 m. A 100 ml sample volume is needed
including 3 rinses. Samples are to be frozen while standing upright. No
chemicals needed. Whitledge is responsible for these samples. He will send
them via Federal Express (account No. 170118804) to Dr. Dennis Hansell,
Bermuda Biological Station, College of Ocean and Atmospheric Sciences,
17 Biological Lane, St. Georges GE01, BERMUDA. Ph: (441) 297-1880 ext.
210, Fax: (441) 297-8143, e-mail: dennis@bbsr.edu
EQUIPMENT REQUIRED: (Should be included on Common-Use Equipment
request form.)
Sea-Bird 911 plus CTD with dual temperature and conductivity sensors,
rosette, fifteen 10-L Niskin bottles, fluorometer, PAR sensor and transmissometer.
CTD data acquisition PC and tape backup system.
Benthos 12 KHz pinger.
Winches, wire, slip rings and fittings for CTD, bongo and coring winches.
Crane for moving and deploying ~800 lb box corer.
150-kHz ADCP with P-code GPS navigation and Ashtech 3DF inputs to DAS
UE4.
MET/SLOGGER/XMIDAS system acquiring, recording and displaying air temperature,
barometric pressure, PAR, short wave solar radiation (Eppley PSP), relative
humidity, wind speed and direction, and flow-through water temperature,
salinity and fluorescence.
Computer network to connect our DOS PC, Unix workstation, Macintosh Power
PC, and postscript printer.
Flow-through water temperature and salinity sensors.
Flow-through fluorometer.
Continuous salt-water source and hose in shadow-free area of fantail
to cool phytoplankton deck incubator.
Freezer space - 15 cu. ft.
Refrigerator space - 10 cu. ft.
Lab bench space - 18 linear ft. with 10 ft. near sink.
Plain paper copier.
OSU storage van under overhang.
Storage space for about 100 cubic feet (~600 lbs) of spares and misc.
equipment will be required in a dry area. This is equivalent to 2-3 pallets
of scientific gear that must be transferred from the Miller Freeman on 29
April in Dutch Harbor, i.e. on the preceding cruise. (TW)
Approx 3 cubic feet of hazardous material storage will be required. (TW)
SCIENTIFIC PERSONNEL TO BE ON BOARD (Provide full legal name
&
affiliation):
Scientist in Charge:
Dr. Edward D. Cokelet NOAA/PMEL
Principal Investigators:
Dr. Susan Henrichs Inst. Marine Science, U. Alaska Fairbanks
Dr. John Goering Univ. Alaska Fairbanks
Dr. Terry E. Whitledge Univ. Texas Marine Science Institute
Technicians:
Mr. Eugene Burger NOAA/PMEL
Mr. Dave Kachel NOAA/PMEL
Ms. Lynn Tinnin Univ. Texas Marine Science Institute
Mr. Destry Wion NOAA/AFSC
Students:
Ms. Stacy Smith Univ. Alaska Fairbanks
Mr. Taekeun Rho Univ. Alaska Fairbanks
Observers: None
OSU Marine Technicians
assigned to cruise: To be named
USER SUPPLIED EQUIPMENT (Include in Deck Layout Plan):
Networked PC (1 or 2), Unix workstation and PostScript printer. (EDC)
Datasonics PSA-916D sonar altimeter (200 KHz, 6000 m pressure case) to
measure CTD height off the bottom (100 m range). (EDC)
~250 lbs. (15 cu ft.) of miscellaneous laboratory equipment which will
be air-freighted to Dutch Harbor and off-loaded at cruise end. (SH)
10 small boxes (about 25 cu. ft.) of laboratory equipment weighing ~300
lbs which will be air-freighted3 to Dutch Harbor and off-loaded at cruise
end. (JG)
Secchi disk (JG)
Alpkem nutrient analyzer (TW)
Chlorophyll filtration rig (TW)
Nutrient data logging computer (TW)
Glassware and chemical supplies for nutrient analyses (TW)
20 cm bongo net frame with 150 micron mesh nets, hard and soft cod ends
and spares (JN)
60 cm bongo net frame with 333 micron mesh nets, hard and soft cod ends
and spares (JN)
Net flow meters (JN)
Weight for bongo nets (JN)
SeaCat for bongo net tows (JN)
CalVET net (JN)
Discrete Sample Data Forms and computer with database preloaded (JN)
Stop watch (JN)
Plankton sieves, squirt bottles (JN)
Sample jars and labels (JN)
Concentrated formalin and sodium borate solution (JN)
Syringe system for delivering preservatives (JN)
Nutrient bottles (JN)
Filters, tubes, freezer boxes and forms chlorophyll samples (JN)
Filtration manifold, vacuum trap and pumps (JN)
VANS:
