Submarine venting of liquid carbon dioxide on a Mariana Arc volcano

J. Lupton1, D. Butterfield2, M. Lilley3, L. Evans4, K. Nakamura5, W. Chadwick Jr.4, J. Resing2, R. Embley1, E. Olson3, G. Proskurowski3,6, E. Baker7, C. de Ronde8, K. Roe3, R. Greene4, G. Lebon2, and C. Young9

1NOAA/Pacific Marine Environmental Laboratory, Newport, Oregon
2JISAO/University of Washington, Seattle, Washington
3School of Oceanography, University of Washington, Seattle, Washington
4CIMRS/Oregon State University, Newport, Oregon
5National Institute of Advanced Industrial Science and Technology, Tsukuba, Japan
6Department of Marine Chemistry and Geochemistry, Woods Hole Oceanographic Institution, Woods Hole, Massachusetts
7NOAA/Pacific Marine Environmental Laboratory, Seattle, Washington
8Institute of Geological and Nuclear Sciences, Lower Hutt, New Zealand
96450 Eagles Crest Road, Ramona, California

Geochem. Geophys. Geosyst., 7, Q08007, doi: 10.1029/2005GC001152, 2006 .
Copyright ©2006 by the American Geophysical Union. Further electronic distribution is not allowed.

1. Introduction

While considerable effort has been devoted to exploring for submarine hydrothermal activity along the global mid-ocean ridge (MOR) system where tectonic plates are diverging, very little is known about the distribution and intensity of similar submarine activity on volcanic arcs where plates converge. de Ronde et al. [2001] made the first systematic study of hydrothermal activity in this tectonic setting along the southern Kermadec Arc. Their water column plume surveys showed that a substantial portion of the submarine volcanoes there are hydrothermally active [de Ronde et al., 2001]. Furthermore, in contrast to MOR activity that is mainly confined to the depth range of 2000-2500 m, the Kermadec Arc volcanoes were found to be introducing hydrothermal effluent at a wide variety of ocean depths, ranging from 100 to 1800 m.

During February-March 2003, as part of the Submarine Ring of Fire (SROF) project funded by NOAA's Ocean Exploration Program, the R/V Thomas G. Thompson conducted a comprehensive survey of submarine hydrothermal activity along a second volcanic arc, the Mariana Arc from 13.5°N to 22.5°N [Embley et al., 2004]. Plume surveys were conducted in the water column above ~50 Mariana Arc submarine volcanoes using a CTD/rosette system that included an Eh sensor for measuring in-situ oxidation-reduction potential. A total of 70 CTD casts were completed, and discrete water samples were collected for analysis of a variety of hydrothermal tracers, including He, CH, CO, HS, Fe, Mn, pH, and suspended particles. The analysis of these samples showed that 12 of the Mariana Arc submarine volcanoes surveyed had active hydrothermal discharge. Of these, 8 were new sites and 4 were volcanoes previously known to be hydrothermally active [see Embley et al., 2004]. The newly discovered activity included that on NW Eifuku, a small volcanic cone located at 21.49°N, 144.04°E that rises to a depth of ~1535 m below sea level (Figures 1 and 2). NW Eifuku is the deepest in a cluster of 3 volcanoes that includes the larger neighboring volcanoes Daikoku and Eifuku. The water column samples collected over NW Eifuku in 2003 had excess concentrations of He, CO, CH, Fe, and Mn, as well as pH, light backscattering (suspended particle), and Eh anomalies, all confined to the depth range of 1490 to 1620 m [Lupton et al., 2003; Resing et al., 2003].

Figure 1

Figure 1. (a) Location map for NW Eifuku in the Mariana Arc. (b) Oblique 3-D representation of NW Eifuku viewed from the southwest, generated from EM300 bathymetry. No vertical exaggeration. Depths range from 1550 to 3000 m.

Figure 2

Figure 2. (a) Bathymetric map showing locations of Daikoku, Eifuku, and NW Eifuku submarine volcanoes. Box shows location of Figure 2b. (b) Detailed bathymetric map of NW Eifuku. Box shows location of Figure 2c. (c) High-resolution bathymetry of the summit of NW Eifuku, showing location of the Champagne site and Sulfur Dendrite (SD) and Cliff House (CH) vent sites. This high-resolution bathymetry was collected using the Imagenex sonar system mounted on the ROPOS ROV [Chadwick et al., 2001, 2004].

2. Discovery of the Champagne Site

The second phase of the SROF project consisted of a follow-up expedition aboard the R/V T.G. Thompson in March-April 2004 employing the remotely-operated vehicle (ROV) ROPOS to directly explore and sample a selected group of the Mariana Arc submarine volcanoes. Three ROV dives were devoted to exploring NW Eifuku. Approximately 8 hours into the first dive, at a depth of 1604 m, ROPOS discovered a remarkable hydrothermal field (later named Champagne) with small white chimneys discharging buoyant milky fluid. Subsequent surveys with the ROV located several additional sites of hydrothermal discharge on NW Eifuku, although the most intense venting was found at the Champagne site ~80 m WNW of the volcano summit. The summit of NW Eifuku was mapped with an Imagenex scanning sonar on ROPOS (Figure 2c), following the methods described by Chadwick et al. [2001]. The highresolution bathymetry shows that the Champagne vent field lies in the steep headwall of a gravitational slope failure that cuts across the top and SW side of the volcano [Chadwick et al., 2004]. Although there were few vent animals right at the Champagne site, an extensive biological community was found within the surrounding few hundred meters, including mussels, shrimps, crabs and limpets.

In addition to the vent fluid discharge at Champagne vent, droplets coated with a milky skin were rising slowly from the seafloor around the chimneys (Figure 3). The droplets were later determined to consist mainly of liquid CO, with HS as a secondary component. The seafloor area of active CO droplet flux was characterized by pumice and whitish/yellowish sulfur-rich material. The droplets were sticky and adhered to the ROV like clumps of grapes, although they did not tend to coalesce into larger droplets (Figure 3e). The film coating the droplets was assumed to be CO hydrate (or clathrate) which is known to form whenever liquid CO contacts water under these P, T conditions [Sloan, 1990]. Liquid CO should be buoyant at the depth of the Champagne site, since it has a density less than seawater at depths shallower than about ~2600 m [Brewer et al., 1999]. At NW Eifuku, droplets percolated out of crevices in the seafloor, and we did not observe the formation of small hydrate pipes as noted at the JADE site in the Okinawa Trough [Sakai et al., 1990a]. The flux of liquid CO droplets increased dramatically whenever the seafloor was disturbed by the ROV. This observation is consistent with the presence of a layer of liquid CO beneath the surface capped by an impeding layer of CO hydrate (see Figure 4). Thus any penetration of the hydrate cap releases the buoyant liquid CO beneath. These observations are similar to those reported by Sakai et al. [1990a], who discovered venting of liquid CO in the Okinawa Trough back-arc basin. A comparison of the video from both sites indicates a higher flux of CO-rich droplets at NW Eifuku compared to the JADE site (see Figure 3 caption).

Figure 3

Figure 3. Photographs of the Champagne hydrothermal site taken with the ROPOS ROV. (a, b, and c) Small chimneys venting 103°C vent fluid. Liquid CO droplets are also visible. (d) Close-up of liquid CO droplets rising in a stream from the seafloor. (e) Liquid CO droplets collecting on the underside of the ROV bumper-bar and camera. (f) Mussel bed only tens of meters from the Champagne vent site. See also Movies 1 and 2. Additional photographs and video clips from the 2004 Submarine Ring of Fire expedition and from NW Eifuku in particular are available at the Ocean Exploration Web site: http://oceanexplorer.noaa.gov/explorations/04fire/logs/april10/april10.html and http://oceanexplorer.noaa.gov/explorations/04fire/logs/photolog/photolog.html.

Figure 4

Figure 4. Diagram of near surface conditions at the Champagne vent field. The "?" indicates possible regions where liquid CO and/or CO hydrate are being entrained into the vent fluid flow.

In October-November of 2005 we had a second opportunity to collect samples at NW Eifuku during cruise NT05-18 aboard the R/V Natsushima. During the Natsushima cruise, the ROV Hyper-Dolphin completed 6 dives on NW Eifuku, 2 on the volcano flanks and 4 on the summit area. During this expedition, the Hyper-Dolphin collected additional samples of both the vent fluids and liquid droplets at the Champagne site.

3. Methods

Samples of the Champagne vent fluid were collected in special gas-tight, all-metal bottles constructed of titanium alloy. The bottles, which have an internal volume of ~150 ml, were initially evacuated. After the connecting lines were flushed, the bottle inlet was opened using a hydraulic actuator, and then hydrostatic pressure quickly forced the vent fluid sample into the bottle. At the end of the ROV dive, the samples were processed on board the ship using a high vacuum extraction line equipped with a low temperature (-60°C) trap and an all-metal bellows pump (Figure 5). The sample was first dropped from the gas-tight bottle into an evacuated glass flask containing ~1 g of sulfamic acid. The acid lowers the pH of the fluid, thereby aiding in the extraction of CO and other dissolved gases. The bellows pump was then used to pump the exsolved gases through the drying trap into a calibrated volume. After the pumping was completed, the total amount of gas was measured using a high precision capacitance manometer attached to the calibrated volume. Then splits of the dry gas were sealed into glass ampoules. For rare gas measurements, the ampoules were constructed of type 1720 or 1724 aluminosilicate glass with low helium permeability. During the 2004 R/V Thompson cruise, our extraction line had the capability of handling about 1.5 l of total gas, which proved to be inadequate for some of the very gassy vent fluid samples. Thus for most gas-rich samples it was necessary to carry out the extractions in multiple steps. While this provided an accurate assessment of total gas content, the multiple step extraction fractionated the samples, making them unsuitable for gas composition or isotopic measurements. For the 2005 R/V Natsushima cruise, the extraction line was fitted with an additional tank increasing the calibrated volume to 11 l, thereby allowing us to extract the samples in one step.

Figure 5

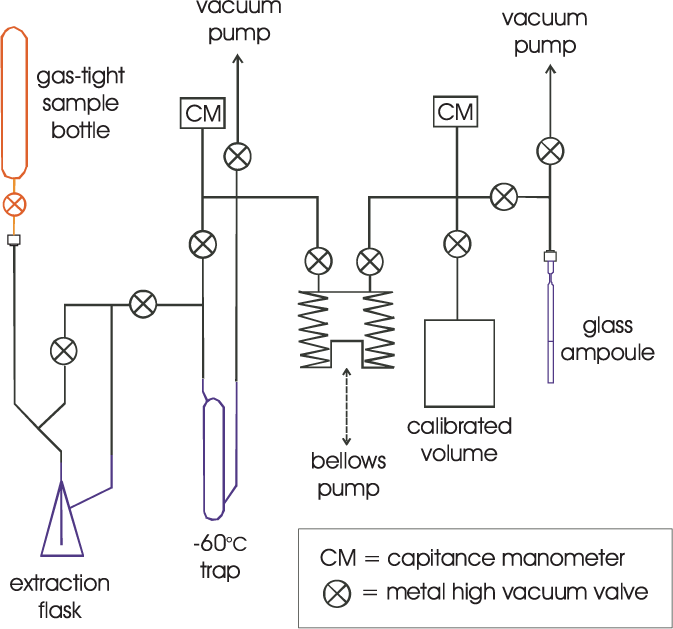

Figure 5. Schematic of the extraction line used for sample processing at sea.

For analysis of dissolved species, additional samples of vent fluid were collected in non-gastight PVC pistons with pressure relief valves at the top to capture the water component. Careful measurements using a temperature probe integral with the sampler inlet gave temperatures of 103°C for the most vigorous vents, although several other vents in the area were discharging fluids at temperatures between 11 and 68°C. Careful probing into the seafloor where the liquid droplets were forming found temperatures <4°C, consistent with the existence of CO in the liquid or hydrate state.

Sampling of the liquid droplets proved to be even more challenging. On one of the 2004 ROPOS ROV dives we collected about 0.5 l of the liquid CO droplets in an inverted plastic cylinder normally used for collection of sediment cores (Figure 6b), and observed the droplets as the submersible ascended to the surface at the end of the dive (Figure 6c). This was similar to an experiment conducted by Sakai et al. [1990a] in the Okinawa Trough. We were able to first observe the continuous conversion of liquid CO into white "sherbet-like" hydrate in the cylinder. Then as the submersible passed through ~400 m depth (at ~4°C), we observed rapid conversion of both liquid CO and hydrate into gaseous CO. This is precisely the pressure depth at which this phase transition was expected, thus confirming our hypothesis that the droplets were composed mainly of liquid CO (Figure 7). The plastic collection cylinder as well as some of the ROV camera face plates suffered permanent damage as a result of contact with the corrosive liquid droplets.

Figure 6

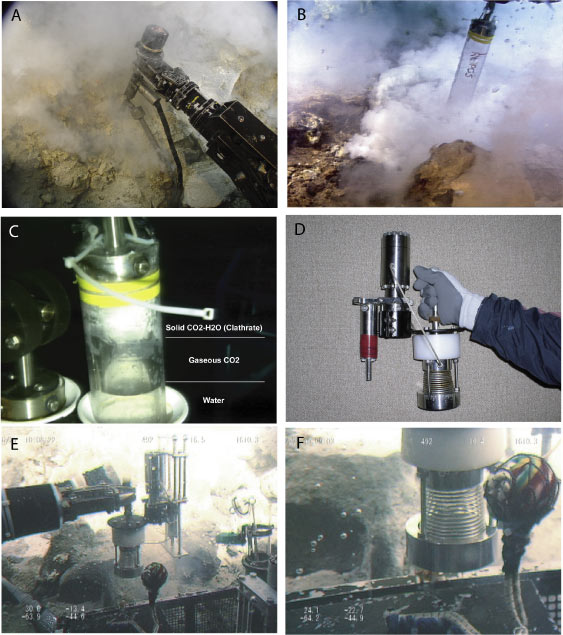

Figure 6. Photographs of sampling at the Champagne site in 2004 and 2005. (a) Fluid sampler being inserted into 103°C hydrothermal vent. (b) Droplets of liquid CO being collected in an inverted plastic cylinder held in the ROV arm. (c) Photograph of the plastic cylinder taken at about 400 m depth during the ROV's ascent to the surface. Most of the liquid droplets have converted to hydrate, and the hydrate is beginning to sublime into gaseous CO. (d) Close-up of the "droplet catcher" used during the 2005 expedition attached to the small volume gas-tight bottle. (e and f) The ROV Hyper-Dolphin sampling liquid CO with the droplet catcher and gas-tight bottle at the Champagne site.

Figure 7

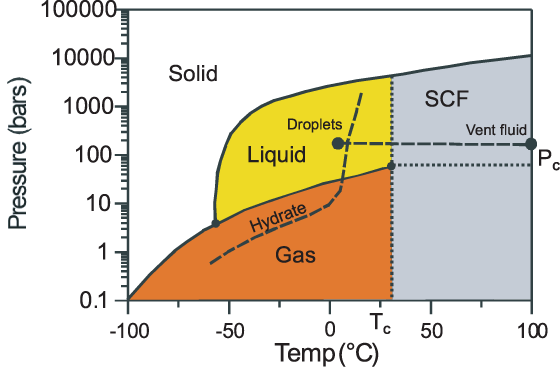

Figure 7. Phase diagram for CO showing regions where solid, liquid, gas, and super-critical fluid (SCF) exist. P and T denote the critical pressure and temperature. The dashed line denotes the boundary of hydrate stability [Sloan, 1990]. The P, T conditions for the Champagne site liquid droplets and for the 103°C vent fluid are shown.

In 2004, liquid CO droplets were also collected by gluing a length of PEEK™ tubing into the plastic cylinder mentioned above and connecting the other end to the inlet of a titanium gas-tight bottle. The ROV again collected about 500 ml of the liquid droplets by holding the plastic cylinder inverted above the buoyant droplet stream. Then the gas-tight bottle was opened, drawing liquid CO into the bottle. As a safety precaution, we opened the bottle several times before the ROV surfaced to allow gas to escape and relieve the internal pressure. Because there was a mixture of liquid CO, hydrate, and water in the bottle, this led to fractionation of the sample gas composition. Furthermore, this liquid droplet sample had to be extracted in multiple steps, leading to further fractionation. However, we were still able to confirm that the droplets consisted of >90% CO by volume.

During the 2005 R/V Natsushima cruise, we employed a new method for the collection of the liquid droplets that was very successful. One of us (C. Young) designed a special "droplet catcher" consisting of a conical metal spring that was connected with PEEK™ tubing to a special titanium gas-tight bottle with low (~10 cc) internal volume (Figure 6d). The spring coil was first filled with liquid droplets by holding it over a stream of CO droplets exiting the seafloor (Figure 6e). We knew from previous experience that the droplets are sticky and do not tend to coalesce. The droplets were visible through the spring coils but stayed in place inside the coils. Then the spring coil was compressed against a flat surface on the ROV, thereby expelling most of the excess water between the droplets. Finally, the small volume gas-tight bottle was triggered, drawing the droplet sample into the bottle. During the Natsushima cruise, we were able to collect 4 good samples of the liquid droplets with this technique. Subsequent analysis showed that each sample contained about 5 cc of liquid CO. This converted to about 7 l of gas at STP in the extraction line, which we were able to handle quite easily with our enlarged calibrated volume.

In both 2004 and 2005, water column samples were collected using a CTD rosette package. Plume identification was accomplished using both a light scatter sensor and an Eh sensor. Samples were collected into Niskin type bottles and sub-sampled for helium isotopes, CO, and other plume components.

He and Ne concentrations, He/He ratios, and C/C ratios were determined by mass spectrometry, while CO, CH, H, and other gas concentrations were determined by gas chromatography. Total CO in the water column plume samples was analyzed by coulometry. Radiocarbon was measured on selected samples at the Center for Accelerator Mass Spectrometry at Lawrence Livermore National Laboratory. Hydrogen sulfide was analyzed on fluid samples collected with the nongas-tight PVC pistons using the conventional methylene blue method. However, due to possible gas loss from the PVC pistons, these HS values represent only a lower limit. As an alternative, splits of the gases from selected gas-tight bottle samples were sent to Atmospheric Analysis and Consulting (AAC), Inc., Ventura, CA, for analysis of reduced sulfur compounds by sulfur chemiluminescence (method ASTM D-5504). In addition, AAC measured CO abundances by conventional thermal conductivity gas chromatography on the same samples, thereby producing a measure of the HS/CO ratio.

4. Results

The analytical results for the 2004 and 2005 samples from NW Eifuku are summarized in Tables 1 and 2. By theory and observation, hightemperature hydrothermal fluids are nearly devoid of Mg, so pure "end-member" fluid compositions normally are estimated by extrapolating to zero Mg [Edmond et al., 1979; Seyfried, 1987; Von Damm, 1990]. However, even though in-line temperatures of ~103°C were measured during sampling, none of the samples collected at the Champagne site had a Mg concentration less than 43 mmol/kg, although several samples approach this value. As we will explain in the Discussion section, we do not believe that a high temperature zero-Mg endmember exists at the Champagne site. Rather than extrapolate to zero magnesium, which would yield unrealistically high temperatures and CO2 concentrations, we assign the value of 43 mmol/kg Mg to the undiluted 103°C vent fluid that exists at the seafloor. In adopting this approach, we assume that the range of Mg concentrations that we measure is due to entrainment of local seawater during sampling. In Figure 8, vent fluid properties are plotted versus Mg, and mixing lines are shown extrapolating the concentrations to the assumed end-member Mg value of 43 mmol/kg. By extrapolating to this value, we believe we are correcting each sample for seawater dilution during sampling.

Figure 8

Figure 8. Vent fluid concentrations for CO, HS, and He versus Mg for NW Eifuku vent fluids. Vent designations are CH (Champagne), SD (Sulfur Dendrite), CL (Cliff House), and DS (Diffuse Site). The 2004 collections are shown in red; the 2005 collections are shown in blue. Fluid discharge temperatures are indicated in parentheses. All of these sites are near the Champagne vent field (see Figure 1b). Possible mixing lines are shown indicating end-member compositions for 2004 samples (red lines) and 2005 samples (blue lines). The solubility of CO in water at these conditions (160 bars, 100°C) is shown for comparison.

Turning our attention at first to the 2004 results, based on an extrapolation to 43 mmol/kg Mg, the 103°C Champagne hydrothermal fluid contained a surprising ~3.0 moles/kg of CO. This is an order of magnitude higher than any CO values previously reported for submarine hydrothermal fluids (Figure 9). As will be discussed later, we believe that this very high CO concentration in the vent fluid is the result of subsurface entrainment of liquid CO and/or CO hydrate. The overall gas composition of the 2004 vent fluid was ~3000 mmol/kg CO, ~12 mmol/kg HS, <0.2 mmol/kg CH and H, and 0.01 mmol/kg He. Although we analyzed for CO, it was for the most part below our detection limit (Table 1). Concentrations of N, O, Ar, and Ne are also included in Table 1 as indicators of air or seawater contamination. Two of the samples collected in 2005 (H494-GT4 and H497-GT7) did suffer from air contamination on the basis of their N and O concentrations, but not enough to compromise the other gas measurements. The Champagne vent fluids have lithium concentrations in the range of 20 to 26 mol/kg, significantly lower than the ambient seawater concentration (26.5 mol/kg), and pH ranging from 3.4 to 4.8. The low end of measured pH of Champagne vent fluids is consistent with CO buffering in the end-member fluid.

Figure 9

Figure 9. Histogram comparing estimated end-member CO concentrations for vent fluids from mid-ocean ridges [Kelley et al., 2004], the Okinawa Trough [Sakai et al., 1990a, 1990b], and NW Eifuku (this work). For the MOR and Okinawa Trough samples, the end-member concentrations were derived in the usual way by extrapolating to zero Mg. For the NW Eifuku samples a value of 43 mmol/kg was used for this end-member extrapolation (see text for explanation).

Table 1

Table 1. Gas Compositions for Vent Fluid and Liquid Droplet Samples From NW Eifuku

As discussed above, we were not able to collect an unfractionated sample of the liquid droplets in 2004. However, analysis of the one liquid droplet sample that we collected confirmed that the droplets were composed of >90% CO, with the remaining gas assumed to be HS.

As discussed above in the Methods section, determining HS concentrations in these NW Eifuku samples was challenging because of the high gas content of the samples. Shipboard analysis of samples collected with the non-gas-tight PVC pistons shows a roughly linear trend of increasing HS with decreasing Mg, with HS reaching approximately 4.5 mmol/kg in the water phase of the least diluted PVC piston samples (Figure 8b). However, because the PVC piston samples have lost significant gas volume in most cases, these are minimum values for HS in the fluids. One gas-tight sample collected in 2004 (R793-GT5) was analyzed by sulfur chemi-luminescence gas chromatography at Atmospheric Analysis and Consulting, Inc., and this value lies on the mixing line through the highest of the PVC piston results (Figure 8c). This suggests that the end-member concentration (~12.5 mmol/kg HS) derived from this mixing line (the red mixing line) represents the best estimate for the 2004 Champagne fluid composition. In all of the samples analyzed at AAC, HS was the only sulfur species detected.

During the return visit to NW Eifuku in 2005, while the Champagne site still had a constant flow of vent fluid and liquid droplets, there seemed to be slightly less activity than observed in 2004. During our first visits to the Champagne site in 2004, the vent fluid was discharging through several small white chimneys (see Figures 3a, 3b, and 3c). We were surprised to find that these chimneys, which were destroyed by the ROV during the 2004 sampling, had not re-grown during the intervening 18 months. As shown in Tables 1, 2, and 3 and in Figure 8, on the basis of "end-member" extrapolations, compared to 2004 the CO concentration was lower in 2005, accompanied by higher HS, lower He, and higher C/He ratios. One of the major accomplishments of the 2005 Hyper-Dolphin dives was the successful collection of 4 uncontaminated samples of the liquid droplets (see Methods section above). The liquid droplets had a gas composition of ~98% CO, <0.01% CH and H, ~6 ppm He, and ~0.8% HS (see Tables 1 and 3). While this composition is similar to that of the vent fluids, the liquid droplets collected in 2005 have lower HS/CO and higher He/CO ratios than the 2005 vent fluids (Table 3).

Table 2

Table 2. Isotope Ratios for Vent Fluid and Liquid Droplet Samples From NW Eifuku

Table 3

Table 3. Estimated End-Member Compositions, Based on Extrapolating to a Mg Concentration of 43 mmol/kg

The helium in both the Champagne vent fluid and in the liquid droplets had an isotopic ratio of R/R = 7.31 ± 0.05, a value typical of subduction zone systems (R = He/He and R = R) [Poreda and Craig, 1989; Hilton et al., 2002]. During the 2003 water column surveys over NW Eifuku, helium samples were collected that allowed an estimate of the end-member helium isotope ratio based on the co-variation of [He] versus [He]. This estimate gave R/R = 7.25 ± 0.4, in remarkably good agreement with direct measurements of the vent fluids (see Figure 10). Furthermore, the C/He ratio estimated from measurements of CO and [He] in the water column plumes differed only by 10% from that determined from the vent fluids (Figure 10c). This suggests that reliable estimates of the ratios of certain vent fluid properties can be made from samples of the overlying water column plumes, even though these plumes typically contain only 0.1% or less of the pure vent fluid.

Figure 10

Figure 10. Plots showing He, He, and CO data collected in the water column over NW Eifuku in 2003 (filled triangles) and 2004 (filled circles). (a) [He] and CO versus depth. The depth of the Champagne vent field is indicated for comparison. (b) [He] versus [He] showing an estimate of the end-member He/He ratio based on a linear regression fit. Here R = He/He and R = R = 1.39 × 10. (c) CO versus [He] showing a similar estimate of the end-member CO/He ratio.

Isotopic analysis of the CO in the Champagne vent fluid gave C = -1.75‰, while the carbon in the liquid droplets was slightly heavier (C = -1.24‰). The C/He ratio ranged from 1.6 to 9.7 × 10 for the Champagne vent fluids, and from 1.4 to 1.9 × 10 for the liquid droplets (Table 2). A sample of the CO from the Champagne site 103°C vent fluid was analyzed for radiocarbon at the CAMS facility at Lawrence Livermore National Laboratory. The result was C = -998.7‰, corresponding to an age of 53450 ± 3200 years, or a fraction of modern carbon of only 0.0013 (see Table 2). Analyses of the 68°C vent fluid and of the liquid CO droplets yielded similar results. Thus the carbon in the Eifuku CO is "dead" (age ≥ 50,000 years).

5. Discussion

In order to put the very high CO concentration of the Champagne vent fluids in perspective, Figure 9 compares the end-member CO concentrations at NW Eifuku with those at the Okinawa Trough and at various mid-ocean ridge hydrothermal sites. Although Sakai et al. [1990a] observed liquid CO venting at the JADE site in the Okinawa Trough, the 320°C vent fluid at the JADE site contained only 200 mmol/kg of CO. As shown in Figure 9, the end-member CO concentrations at the Champagne site are an order of magnitude higher than any values reported for other hydrothermal fluids, and 100 times higher than average values at MOR systems. The structure of the hydrothermal system at NW Eifuku is clearly different from that at the JADE site, where high temperature, zero-magnesium fluids are produced in a reaction zone with low water/rock ratio [Sakai et al., 1990a, 1990b].

The CO concentration at NW Eifuku is even more remarkable when it is compared against the CO solubility at these P, T conditions. The solubility of CO in seawater at 160 bars, 100°C is ~1.0 mole/kg [Wiebe and Gaddy, 1939; Takenouchi and Kennedy, 1964], much lower than the concentrations we measured in 2004. The most plausible explanation for the apparent supersaturation of CO is that the Champagne vent fluid is entraining small amounts of liquid CO and/or CO hydrate as the hot vent fluid penetrates the layers of CO liquid and hydrate that we propose exist beneath the seafloor (Figure 4). Incorporation of only 6% by volume of liquid CO into the vent fluid would increase the CO concentration from 1 to 2.7 moles/kg, and this liquid CO would likely not be visible as a separate phase in the vent fluid stream.

The 2005 vent fluid samples had lower CO concentrations and different relative proportions of dissolved gases compared to the earlier 2004 collections. In fact, none of the 2005 water samples had CO concentrations above the 1.0 mole/kg solubility of CO at the conditions at the Champagne site. Furthermore, as discussed above, the 2005 vent fluid samples had higher end-member HS/CO ratios, and higher C/He ratios compared to the 2004 samples (Table 3). For whatever reason, the liquid droplets have lower HS/CO, lower C/He, and are heavier in C compared to the vent fluids. This difference between the vent fluid compositions in 2005 versus 2004 may be due to temporal changes in the degree of entrainment of liquid CO and/or hydrate into the rising vent fluid. Our results indicate that all of the vent fluid samples are actually a mixture of the pure "subsurface" hydrothermal fluid combined with varying amounts of entrained liquid CO or CO hydrate. The end-member compositions estimated for the 2005 samples (see Table 3) may thus represent a form of the Champagne vent fluid relatively un-contaminated with entrained liquid CO, while the gas-rich 2004 vent fluids had more entrained liquid CO. For the 2004 vent fluid samples with ~2.7 moles/kg CO, most of the CO came from the entrained liquid droplets and/ or hydrate, while most of the HS and He was already dissolved in the hot fluid before it reached the near surface liquid CO layer.

In many cases, diffuse hydrothermal fluids are located near high-temperature fluids or their chemistry indicates that they are dilutions of high-temperature fluids, with overprinting lowtemperature reactions [Edmond et al., 1979; Butterfield and Massoth, 1994; Butterfield et al., 1997, 2004; Sedwick et al., 1992]. That is not the case at NW Eifuku. If we were to extrapolate the temperature and fluid composition to a zeromagnesium value, the results would be nothing like a fluid produced in a high-temperature water/rock reaction zone. For example, a zero-Mg extrapolation at NW Eifuku would yield temperatures of 500-600°C, CO concentrations of 10-20 mol/kg, and zero Li concentration. The implication of this is that we are not dealing with a high-temperature aqueous system, but with a high-temperature CO system, entraining some water that undergoes incomplete reaction to remove some seawater magnesium and extract some elements from the rock. CO migrating upward from a gas pocket in a magma chamber must cool as it ascends through volcanic rock and may entrain small amounts of seawater (Figure 11). Water and CO are immiscible at 500 bars at temperatures below 310°C [Takenouchi and Kennedy, 1964; Bowers, 1991] and separate into a CO-rich vapor and a water-rich liquid. As pressure increases, immiscibility of HO-CO occurs at lower temperatures [Bowers, 1991]. In a system dominated by the flux of hot CO from a magma chamber, the penetration of water into the core of the system will be limited at typical hydrothermal temperatures (up to ~350°C) due to the immiscibility. If seawater is not first heated by hot rock (and the water chemistry at the Champagne site indicates minimal high-T water/rock reaction), then the outer portions of the CO column will be in the P-T region of HO-CO immiscibility. As long as the flux of hot CO from the magma chamber and cooling in the pathway to the seafloor is maintained, the penetration of water into the CO-rich zone is inhibited. The presence of a gas hydrate phase at temperatures below 10°C may also inhibit penetration of water into the sub-seafloor CO-rich zone.

Figure 11

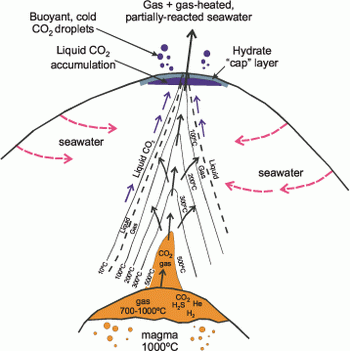

Figure 11. Diagram showing a model proposed for the gas flux from NW Eifuku, in which a CO-rich gas is directly degassing from the magma chamber. As this hot gas rises through the system, it cools, and CO condenses as a separate liquid phase on the periphery of the main conduit. Seawater circulates through the system, but the penetration of water into the core of the system is limited at temperatures below 250°C due to CO-HO immiscibility. At the volcano summit the liquid CO collects beneath a hydrate "cap" layer that forms where the liquid CO comes in contact with seawater. Because the penetration of water is limited and the enthalpy is carried by the CO gas, there is little high-temperature water-rock interaction.

Some insight into the origin of the high CO concentrations at NW Eifuku can be gained from the isotopic composition of the CO and the relation of CO to He. The C of the Champagne vent fluids (-1.75‰) is much heavier than the C = -13 to -4‰ typical for carbon in MOR vent fluids [Kelley et al., 2004]. The NW Eifuku CO is also heavier than that reported for the Mid-Okinawa Trough (-5.0 to -3.7‰) [Sakai et al., 1990a, 1990b], falls at the heavy end of the range reported for arc volcanoes in general (-7 to -2‰) [Sano and Williams, 1996; van Soest et al., 1998], and at the lighter end of the range for marine carbonates (-2 to +1‰) (Figure 12) [Hoefs, 1980]. The C/He ratio for the Champagne vent fluids and liquid droplets (1.3 to 9.4 × 10) is similar to that reported for the Mid-Okinawa Trough [Sakai et al., 1990a, 1990b], but an order of magnitude higher than the average value of 2 × 10 found in MOR vent fluids [Resing et al., 2004]. These C and C/He values indicate that the majority of the carbon flux originated from marine carbonates incorporated into the melt as part of the subduction zone melting process rather than from mantle carbon. Using the method outlined by Sano and Marty [1995] based on C and C/He values, and taking sedimentary organic matter to have a C value of -30‰ as did Sano and Marty [1995], we estimate that the NW Eifuku CO was derived 88% from marine carbonates, 9% from mantle carbon, and 3% from sedimentary organic matter. If instead we assume that the C of sedimentary organic matter is -20‰, then we calculate 87% from marine carbonates, 9% mantle, and 4% from sedimentary organics. These fractions are similar to those observed at subaerial arc volcanoes [Hilton et al., 2002]. The fact that the radiocarbon is "dead" suggests that the CO flux is mainly derived from subducted carbonates incorporated into the melt at depth and that local sediments are not responsible.

Figure 12

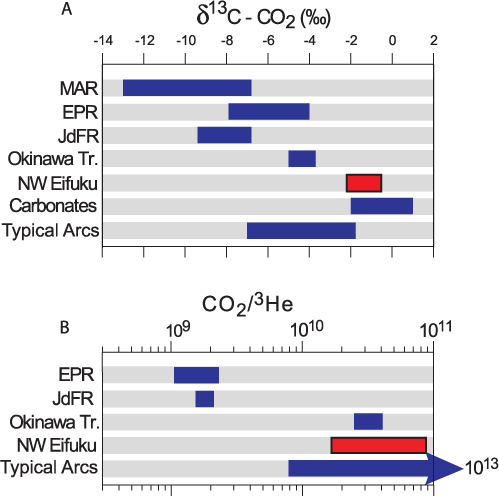

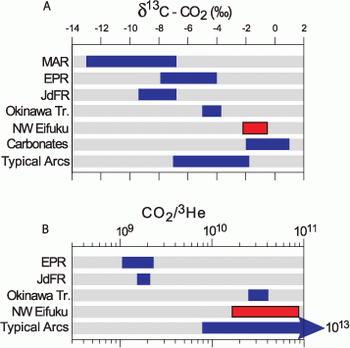

Figure 12. (a) Chart comparing C (‰) for CO from various MOR sites [Kelley et al., 2004], the Okinawa Trough [Sakai et al., 1990a, 1990b], NW Eifuku (this work), marine carbonates [Hoefs, 1980], and typical volcanic arcs [Sano and Williams, 1996; van Soest et al., 1998]. (b) Similar chart comparing CO/He ratios for MOR vents [Kelley et al., 2004], the Okinawa Trough [Sakai et al., 1990a, 1990b], and typical volcanic arcs [Sano and Williams, 1996; van Soest et al., 1998].

It is a simple matter to show that the extremely high concentrations of CO at NW Eifuku cannot be easily derived from either water/rock reaction or from dissolution of putative carbonates within the volcanic edifice. On the first count, it has already been shown [Butterfield et al., 1990; Sedwick et al., 1994] that by extracting all of the CO from 1 kg of MORB, assuming the maximum reported level of 8 mmol CO/kg rock [Dixon et al., 1988], into 1 kg of water (a typical water/rock ratio), the total CO concentration in the aqueous phase would not exceed ~8 mmol/kg. However, according to Wallace [2005], undegassed arc magmas contain ~3000 ppm of CO. Using the same water/rock ratio of 1, this would produce only 68 mmol/kg of CO in the hydrothermal fluid, still far below the 900-2700 mmol/kg we observe. Furthermore, the Champagne vent fluids have lithium concentrations lower than the ambient seawater concentration, indicative of minimal high-temperature water-rock reaction (a high water/rock ratio). Thus it appears to be impossible to extract enough CO from basaltic or andesitic lava by water/rock interaction to reach the levels of CO found in the Champagne vent fluids, or even in some MOR vents (e.g., Axial Volcano on the Juan de Fuca Ridge or 9°N East Pacific Rise). On the second count, the low pH of Champagne vent fluids is inconsistent with calcium carbonate dissolution. In addition, dissolution of carbonates is self-limiting unless there is an additional source of acid to drive more dissolution. In that case, the calcium concentration would also be very high, but it is lower than seawater concentration in the Champagne vent fluids. We conclude that the CO at this site must be derived from magma degassing, as there is no other plausible source.

Although it is clear that the venting at the Okinawa Trough and NW Eifuku Champagne sites locally produces very high CO concentrations, the question remains as to how significant the overall carbon flux is on a global scale. We estimated the volume flux of liquid CO droplets at the Champagne site by examining video collected during the 2004 ROV dives. We first estimated that there were about 300 droplet streams rising from the 10 m area of the Champagne site, and that each stream contained 2 droplets/s, each with an average diameter of ~1.5 cm. This gives a total liquid CO flux of ~1 liter/s or 1 kg/s (assuming a density of 1g/cm3), equivalent to ~23 moles CO/s. Using a similar method, we estimate the CO flux from the Champagne hot vents to be ~ 0.5 mole/s or only about 2% of the liquid CO flux. The CO flux from the liquid droplets at the Champagne site (8 × 10 moles/yr) approximately equals the combined carbon flux from all of the Endeavour Ridge vent fields on the Juan de Fuca Ridge [Rosenberg et al., 1988; Lilley et al., 1993], or about 0.1% of the global MOR carbon flux which is estimated at 0.5-2.0 × 10 moles/yr [Resing et al., 2004]. The carbon flux from the Champagne site is also about 0.1% of the global CO flux from subaerial arc volcanoes, estimated at ~1.6 × 10 moles/y [Hilton et al., 2002]. Although these flux estimates for NW Eifuku are admittedly only accurate to a factor of 2 or so, this carbon flux is surprising, since NW Eifuku is a small, young arc volcano and not a major volcanic edifice. Furthermore, the fact that NW Eifuku is a submarine volcano suggests that carbon fluxes based on observations of subaerial volcanoes may have underestimated the global fluxes from arcs. If there are many such submarine sites active along volcanic arcs and back arcs, then there is potential for a significant impact on oceanic carbon cycling. For completeness it should be noted that Hilton et al. [2002] estimated the carbon flux from an average subaerial arc volcano at 2 × 10 moles/y, about 25 times higher than the carbon flux at NW Eifuku. They arrived at this estimate by normalizing the CO flux to the measured SO flux at various subaerial arc volcanoes, rather than by direct measurements of the CO outgassing rate. Thus the carbon flux at NW Eifuku may be significant for submarine carbon cycling, but not necessarily for the global subaerial carbon flux.

Additional visits and possibly long-term monitoring of the site are required to determine if this high CO flux is time dependent. For example, Miyakejima volcano (Japan) underwent a months-long extremely high-volume magmatic degassing event following a caldera collapse in 2000 [Kazahaya et al., 2004]. Recent mass-wasting at the summit of NW Eifuku could have been triggered by movements along what appears to be a NW-SE fracture underlying the volcano (Figure 2c). Deep conduits could be enlarged and new ones opened during this process. Alternatively, long-term degassing during non-eruptive periods on some volcanoes has been tied to endogenous growth by magmatic intrusion [Allard, 1997].

Recently there has been considerable interest in the possible oceanic disposal of fossil fuel CO as a means to alleviate the increase of atmospheric CO [Brewer, 2000]. One important question concerns the fate of the CO after it is introduced into the ocean. Brewer et al. [2002] measured the rate of dissolution of liquid CO injected into the ocean at a depth of ~800 m, and found that 90% of the buoyant CO droplets dissolved within 200 m above the injection point. As shown in Figure 10, our water column measurements in the vicinity of NW Eifuku are in basic agreement with the Brewer et al. [2002] results. On several hydrocasts collected over the volcano in 2003 and 2004 we found large excesses in 3He and CO that co-varied almost perfectly [Lupton et al., 2003; Resing et al., 2003]. In every case the excess 3He and CO was confined to the depth range of 1490 to 1620 m and returned to background values about 150 m above the depth of the NW Eifuku vent fields (Figure 10).

6. Summary and Conclusions

In summary, we have discovered a site at ~1600 m depth on NW Eifuku, a submarine volcano on the northern Mariana Arc, which is venting droplets of liquid CO at an estimated rate of 8 × 10 moles/yr. This is only the second locality where submarine venting of liquid CO has been observed, the other being the mid-Okinawa Trough [Sakai et al., 1990a, 1990b]. The Champagne site on NW Eifuku is also venting hot (~100°C) vent fluid with CO contents up to 2.7 moles/kg, far above the solubility (~1.0 mole/kg) at these P, T conditions. Observations at the site indicate the presence of a subsurface liquid CO layer under a capping layer of CO hydrate. We attribute the apparent CO super-saturation in the vent fluid to entrainment of small amounts of liquid CO and/or CO hydrate into the ascending vent fluid stream. The liquid droplets are composed of >98% CO, ~1% HS, with only trace amounts of H and CH. The dissolved gases in the vent fluid have a similar composition, with a slightly greater concentration of HS (~3%). The C (CO) and CO/He ratios fall in the range typical for volcanic arcs, and indicate that the carbon is derived ~90% from marine carbonates, the remainder being mantle carbon and sedimentary organic matter. The fact that the radiocarbon is dead (age ≥ 50,000 years) suggests that the source is subducted carbonates incorporated into the melt at depth in the subduction zone and not local carbonates on the volcano edifice.

Sakai et al. [1990a, 1990b] explained their observations in the mid-Okinawa Trough in terms of separate CO-rich and HO-rich fluids that formed as the result of magma chamber degassing. They also discussed subsurface boiling as a possible mechanism for generating these two phases. It is clear that separate cold CO-rich and hot HO-rich fluids exist at the same site in close proximity at NW Eifuku. At the vent site, we envision a mechanism in which hot water is venting through an area of liquid CO and CO hydrate and entrains these, generating hot fluids with CO contents higher than predicted by the limits of CO solubility. In contrast to the 320°C fluids found in the Okinawa Trough, the 103°C fluid temperatures at NW Eifuku are ~250°C below the boiling point at 1600-m depth, and thus shallow subsurface boiling is unlikely. The 103°C fluids do not show signs of intense water/rock interaction, and their low alkali metal content is indicative of a high water/rock ratio. Given that we do not find a zero-magnesium, high-temperature fluid at NW Eifuku, it is impossible to extract enough CO from the rock into circulating seawater to form an aqueous fluid saturated with CO. Instead, the extreme CO concentrations at NW Eifuku require direct degassing of CO from a magma chamber, cooling and migration to the seafloor, resulting in the generation of the CO-rich and HO-rich fluids that we observed. The physical/chemical model we have proposed (Figure 11) differs substantially from the mid-ocean ridge model of extraction of gases from rock by circulating hot water. If our model is correct, then elemental and isotopic fractionations that occur as a result of magma degassing, CO condensation, hydrate formation, HO-CO mixing, and phase separation add considerable complexity to the interpretation of gas ratios and isotopic ratios.

The Champagne vent field and the other sites of hydrothermal activity on NW Eifuku clearly merit further study. As mentioned above, NW Eifuku is only the second locality where natural venting of liquid CO has been reported, the other being the Okinawa Trough, a back-arc basin environment. At the time of its discovery, the Champagne site was the only arc volcano where the phenomenon of liquid CO venting had been found. However, venting of a separate CO gaseous phase was recently observed at 3 other submarine arc volcanoes: Nikko volcano in the Mariana Arc [Lupton et al., 2005], and Giggenbach volcano and Volcano 1, both in the Kermadec Arc [Lupton et al., 2005; Stoffers et al., 2006]. Furthermore, to our knowledge liquid CO venting has never been found on mid-ocean ridges, suggesting that this type of activity is more prevalent on volcanic arcs and the associated back-arc basins. Experiments are being designed to accurately measure the flux and oceanic dispersal of CO at NW Eifuku. In addition to physical and chemical measurements, the hydrothermal sites on NW Eifuku are a valuable natural laboratory for studying the effects of high CO concentrations on marine ecosystems.


We thank K. Shepard, K. Tamburri, and the other members of the Canadian ROPOS team, and the captain and crew of the R/V Thompson for their excellent support during the 2004 SROF expedition, and K. Chiba and the other members of the Hyper-Dolphin team and the Captain and crew of the R/V Natsushima for their support during the NT05-18 expedition. We thank S. Merle for help with the figures and Tom Brown and the Natural C Group at the Center for Accelerator Mass Spectrometry at Lawrence Livermore National Laboratory. V. Salters, D. Hilton, C. German, and T. Fischer provided constructive reviews of the manuscript. Radiocarbon measurements were supported in part by funding from CAMS through the University Collaborative Research Program. This publication was partially funded by the Joint Institute for the Study of the Atmosphere and Ocean (JISAO) under NOAA cooperative agreement NA17RJ1232, contribution 1154. This work was supported by the NOAA Ocean Exploration Program and by the NOAA VENTS Program. This is PMEL contribution 2843.


Allard, P. (1997), Endogenous magma degassing and storage at Mount Etna, Geophys. Res. Lett., 24, 2219–2222.

Bowers, T. S. (1991), The deposition of gold and other metals: Pressure-induced fluid immiscibility and associated stable isotope signatures, Geochim. Cosmochim. Acta, 55, 2417– 2434.

Brewer, P. G. (2000), Contemplating action: Storing carbon dioxide in the ocean, Oceanography, 13, 84–92.

Brewer, P. G., G. Friederich, E. T. Peltzer, and F. M. Orr Jr. (1999), Direct experiments on the ocean disposal of fossil fuel CO, Science, 284, 943–945.

Brewer, P. G., E. T. Peltzer, G. Friederich, and G. Rehder (2002), Experimental determination of the fate of rising CO droplets in seawater, Environ. Sci. Technol., 36, 5441–5446.

Butterfield, D. A., and G. J. Massoth (1994), Geochemistry of north Cleft segment vent fluids: Temporal changes in chlorinity and their possible relation to recent volcanism, J. Geophys. Res., 99, 4951–4968.

Butterfield, D. A., G. J. Massoth, R. E. McDuff, J. E. Lupton, and M. D. Lilley (1990), Geochemistry of hydrothermal fluids from Axial Seamount Hydrothermal Emissions Study Vent Field, Juan de Fuca Ridge: Subseafloor boiling and subsequent fluid-rock interaction, J. Geophys. Res., 95, 12,895–12,921.

Butterfield, D. A., I. R. Jonasson, G. J. Massoth, R. A. Feely, K. K. Roe, R. E. Embley, J. F. Holden, R. E. McDuff, M. D. Lilley, and J. R. Delaney (1997), Seafloor eruptions and evolution of hydrothermal fluid chemistry, Philos. Trans. R. Soc. London, Ser. A, 355, 369–386.

Butterfield, D. A., K. K. Roe, M. D. Lilley, J. Huber, J. A. Baross, R. W. Embley, and G. J. Massoth (2004), Mixing, reaction and microbial activity in sub-seafloor revealed by temporal and spatial variation in diffuse flow vents at Axial Volcano, in The Subseafloor Biosphere at Mid- Ocean Ridges, Geophys. Monogr. Ser., vol. 144, edited by W. S. D. Wilcock et al., pp. 269–289, AGU, Washington, D. C.

Chadwick, W. W., Jr., D. S. Scheirer, R. W. Embley, and H. P. Johnson (2001), High-resolution bathymetric surveys using scanning sonars: Lava flow morphology, hydrothermal vents and geologic structure at recent eruption sites on the Juan de Fuca Ridge, J. Geophys. Res., 106(B8), 16,075–16,100.

Chadwick, W. W., Jr., R. W. Embley, C. E. J. De Ronde, R. J. Stern, J. Hein, S. G. Merle, and S. Ristau (2004), The geologic setting of hydrothermal vents at Mariana Arc submarine volcanoes: High-resolution bathymetry and ROV observations, Eos Trans. AGU, 85(47), Fall Meet. Suppl., Abstract V43F-06.

de Ronde, C. E. J., E. T. Baker, G. J. Massoth, J. E. Lupton, I. C. Wright, R. A. Feely, and R. R. Greene (2001), Intraoceanic subduction-related hydrothermal venting, Kermadec forearc, New Zealand, Earth Planet. Sci. Lett., 193, 359–369.

Dixon, J. E., E. Stolper, and J. R. Delaney (1988), Infrared spectroscopic measurements of CO and HO in Juan de Fuca Ridge basalt glasses, Earth Planet. Sci. Lett., 90, 87–104.

Edmond, J. M., C. Measures, R. E. McDuff, L. Chan, R. Collier, B. Grant, L. I. Gordon, and J. Corliss (1979), Ridge crest hydrothermal activity and the balances of the major and minor elements in the ocean: The Galapagos data, Earth Planet. Sci. Lett., 46, 1–18.

Embley, R. W., E. T. Baker, W. W. Chadwick Jr., J. E. Lupton, J. E. Resing, G. L. Massoth, and K. Nakamura (2004), Explorations of Mariana Arc volcanoes reveal new hydrothermal systems, Eos Trans. AGU, 85, 37–40.

Hilton, D. R., T. P. Fischer, and B. Marty (2002), Noble gases and volatile recycling at subduction zones, in Noble Gases in Geochemistry and Cosmochemistry, Rev. Mineral. Geochem., vol. 47, edited by D. Porcelli, C. J. Ballentine, and R. Wieler. pp. 319–370, Mineral. Soc. of Am., Washington, D. C.

Hoefs, J. (1980), Stable Isotope Geochemistry, 208 pp., Springer, New York.

Kazahaya, K., H. Shinohara, K. Uto, M. Odai, Y. Nakahori, H. Mori, H. Iino, M. Miyashita, and J. Hirabayashi (2004), Gigantic SO emission from Miyakejima volcano, Japan, caused by caldera collapse, Geology, 32, 425–428.

Kelley, D. S., M. D. Lilley, and G. L. Fruh-Green (2004), Volatiles in submarine environments: Food for life, in The Subseafloor Biosphere at Mid-Ocean Ridges, Geophys. Monogr. Ser., vol. 144, edited by W. Wilcock et al., pp. 167–190, AGU, Washington, D. C.

Lilley, M. D., D. A. Butterfield, E. J. Olson, J. E. Lupton, S. A. Macko, and R. E. McDuff (1993), Anomalous CH and NH concentrations at an unsedimented mid-ocean-ridge hydrothermal system, Nature, 364, 45–47.

Lupton, J. E., E. T. Baker, R. W. Embley, J. A. Resing, G. J. Massoth, K. Nakamura, R. Greene, S. Walker, and G. Lebon (2003), Hydrothermal helium plumes over submarine volcanoes of the Mariana Arc, Eos Trans. AGU, 84(46), Abstract T32A-0916.

Lupton, J., et al. (2005), Carbon fluxes from submarine arc volcanoes: Examples from the Mariana and Kermadec Arcs, Eos Trans AGU, 86(52), Fall Meet. Suppl., Abstract V51C-1498.

Poreda, R., and H. Craig (1989), Helium isotopes in circum-Pacific volcanic arcs, Nature, 338, 473–478.

Resing, J. A., G. Lebon, E. Baker, J. Lupton, K. Nakamura, G. Massoth, and R. Embley (2003), Geochemical characterization of hydrothermal plumes above hydrothermally active volcanoes on the Mariana Arc, Eos Trans. AGU, 84(46), Abstract T32A-0915.

Resing, J. A., J. E. Lupton, R. A. Feely, and M. D. Lilley (2004), CO and He in hydrothermal plumes: Implications for mid-ocean ridge CO flux, Earth Planet. Sci. Lett., 226, 449–464.

Rosenberg, N. D., J. E. Lupton, D. Kadko, R. Collier, M. Lilley, and H. Pak (1988), A geochemical method for estimating the heat and mass flux from a seafloor hydrothermal system, Nature, 334, 604–607.

Sakai, H., T. Gamo, E.-S. Kim, M. Tsutsumi, T. Tanaka, J. Ishibashi, H. Wakita, M. Yamano, and T. Oomori (1990a), Venting of carbon dioxide-rich fluid and hydrate formation in Mid-Okinawa Trough backarc basin, Science, 248, 1093–1096.

Sakai, H., T. Gamo, S.-E. Kim, K. Shitashima, F. Yanagisawa, and M. Tsutsumi (1990b), Unique chemistry of the hydrothermal solution in the Mid-Okinawa Trough backarc basin, Geophys. Res. Lett., 17, 2133–2136.

Sano, Y., and B. Marty (1995), Origin of carbon in fumarolic gas from island arcs, Chem. Geol., 119, 265–274.

Sano, Y., and S. N. Williams (1996), Fluxes of mantle and subducted carbon along convergent plate boundaries, Geophys. Res. Lett., 23, 2749–2752.

Sedwick, P. N., G. M. McMurtry, and J. D. MacDougall (1992), Chemistry of hydrothermal solutions from Pele Vents, Loihi Seamount, Hawaii, Geochim. Cosmochim. Acta, 56, 3643–3667.

Sedwick, P. N., G. M. McMurtry, D. R. Hilton, and F. Goff (1994), Carbon-dioxide and helium in hydrothermal fluids from Loihi Seamount, Hawaii, USA—Temporal variability and implications for the release of mantle volatiles, Geochim. Cosmochim. Acta, 58, 1219–1227.

Seyfried, W. E., Jr. (1987), Experimental and theoretical constraints on hydrothermal alteration processes at mid-ocean ridges, Annu. Rev. Earth Planet. Sci., 15, 317–335.

Sloan, E. D., Jr. (1990), Clathrate Hydrates of Natural Gases, CRC Press, Boca Raton, Fla.

Stoffers, P., et al. (2006), Submarine volcanoes and high-temperature hydrothermal venting on the Tonga Island Arc, S.W. Pacific, Geology, 34, 453–456.

Takenouchi, S., and G. C. Kennedy (1964), The binary system HO-CO at high temperatures and pressures, Am. J. Sci., 262, 1055–1074.

van Soest, M. C., D. R. Hilton, and R. Kreulen (1998), Tracing crustal and slab contributions to arc magmatism in the Lesser Antilles island arc using helium and carbon relationships in geothermal fluids, Geochim. Cosmochim. Acta, 62, 3323– 3335.

Von Damm, K. L. (1990), Sea floor hydrothermal activity: Black smoker chemistry and chimneys, Annu. Rev. Earth Planet. Sci., 18, 173–204.

Wallace, P. J. (2005), Volatiles in subduction zone magmas: Concentrations and fluxes based on melt inclusion and volcanic gas data, J. Volcanol. Geotherm. Res., 140, 217–240.

Wiebe, R., and V. L. Gaddy (1939), The solubility of carbon dioxide at 50, 75, and 100°, at pressures to 700 atmospheres, J. Am. Chem. Soc., 61, 315–318.
