Work in progress:: the enhanced TAO mooring at 0°, 110°W

Work in progress: The enhanced TAO mooring at 0°, 110°W

  • Hourly SST

  • Amplitude of the SST diurnal cycle for EMP

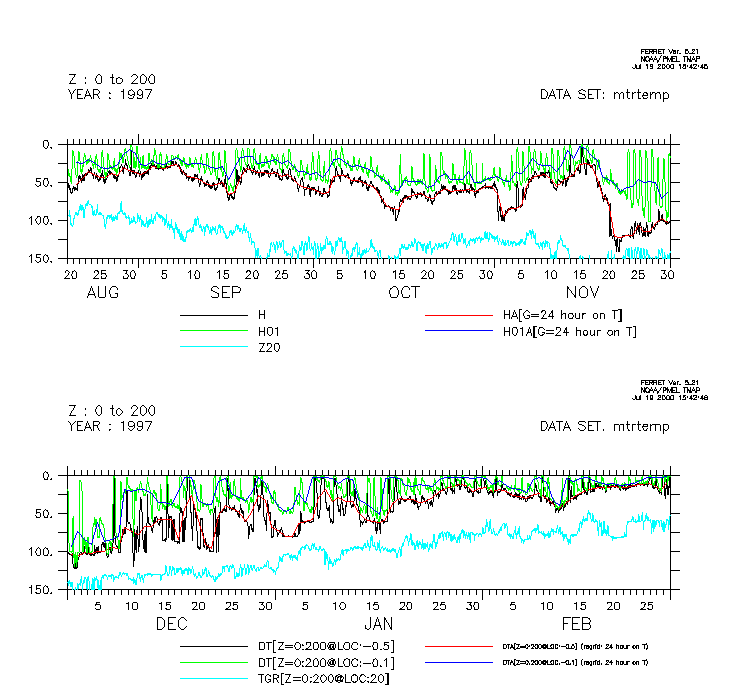

  • MLD=z(T=SST+0.5) vs. z(T=SST+0.1) from hourly data vs. daily avg data
    During periods with a diurnal cycle and deep thermocline, the larger temperature step definition works much better.

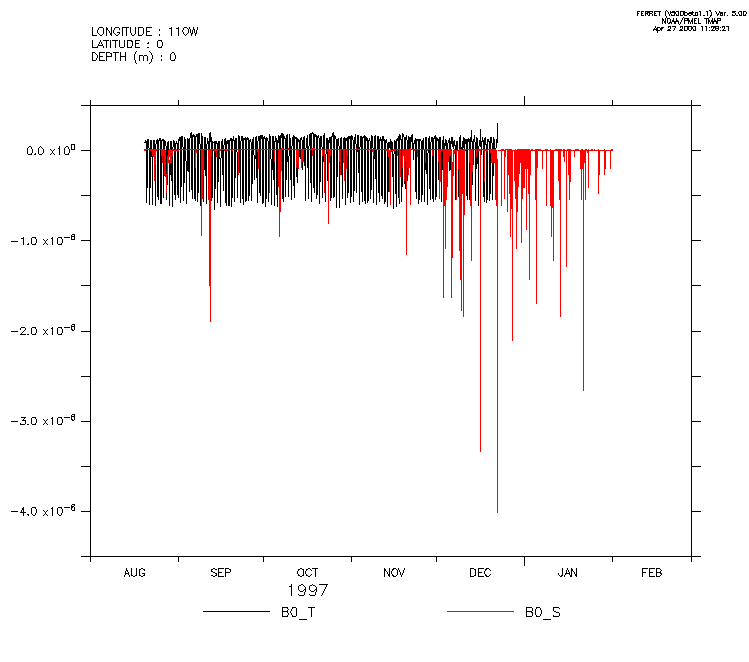

  • Hourly B0_T vs. B0_S
    Precipitation becomes a dominant term in the surface buoyancy flux at 0 110W during the final stages of the 1997-98 El Nino.

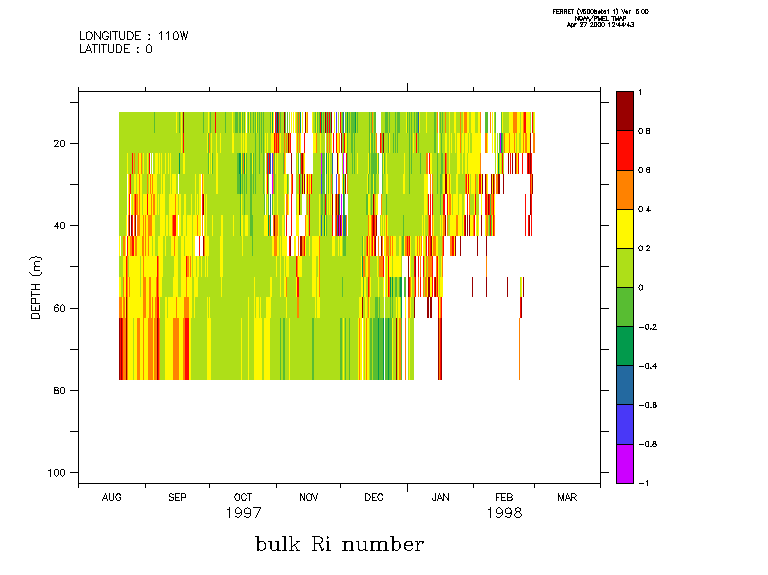

  • Hourly bulk Richardson number.
    The bulk Ri number is computed using hourly current meter data at 10m 25m 45m and 80m, and temperature data at 5 m intervals between 1m and 50m, and 20 m intervals to 140 m. Only values between -1 and 1 are shown, i.e. roughly in the unstable range.

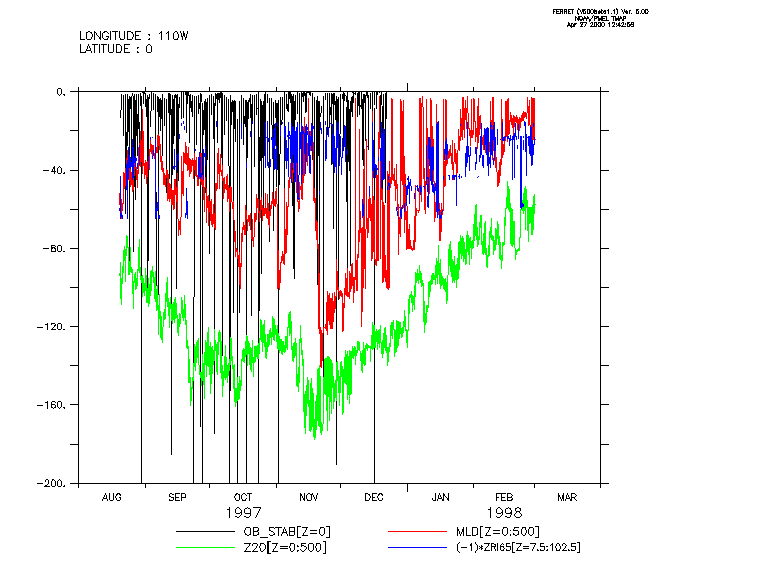

  • Hourly OB depth for stabilizing B0 vs. MLD vs. Z20 vs. depth that bulk Ri=0.65
    MLD is defined as the depth that T is 0.5C cooler than SST. The bulk Ri=0.65 contour does a fairly good job at predicting the MLD (except for during Oct-Nov). The Obukhov depth (2*usr^3/B0) is shown only for stable buoyancy fluxes.

    In a steady state system subject to wind stirring and a mean stabilizing buoyancy flux, you might expect the MLD to be equivalent to 2 * mean(usr^3) / mean(B0), which in our case is 16 m. The mean MLD for this period though is 51 m. Obviously more is going on here.

    What's going on in Oct-Nov? Both the surface forcing estimate (OB) and the shear instability estimate (Zri=0.65) predict a much shallower MLD than observed. Perhaps our MLD is not a good estimate of the true mixed layer depth?

    For periods where the Z(ri=0.65) is defined, its mean depth is 35 m and the mean MLD is 45 m. Taking out OCT-NOV, the mean Z(ri=0.65) is 38 m and the mean MLD is 40 m.

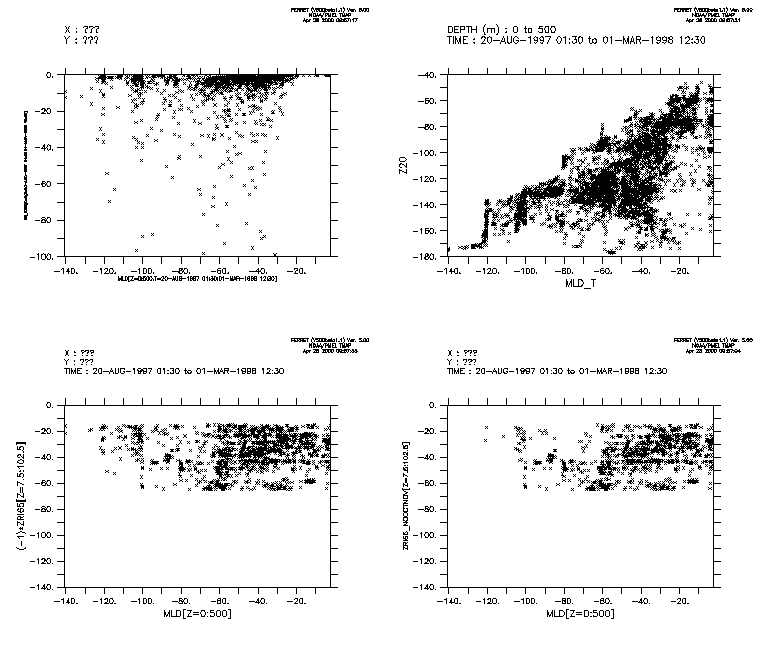

  • Scatter plots of MLD vs. (top left) OB depth for stabilizing B0, (top right) Z20, (lower left) depth that Ri=0.65, and (lower right) depth that Ri=0.65 not including Oct-Nov.
    Z20 and critical Ri number depths appear to be fairly well correlated with MLD. (still need to compute correlation coef's). Note: The Ri number depth comparison does not show cause of shear instability, e.g. from surface forcing or variability in background thermocline structure.
