| Project: |
Ecosystem Trends |
|
| Location: |
Bering Sea Site 2 |
|
| Latitude: |
56° 52' N |
|
| Longitude: |
164° 3' W |
|
| seafloor |
72 meters |
|
| currents |
70 cm/s |
|
| Deployment |
5 months |
|
| |

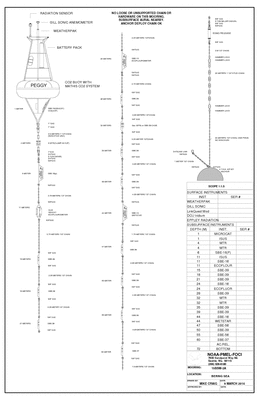

| Instruments: |
|
| Mooring: |
|
| Instrument: |
Depth |
|
| Weatherpak |
1 |
with Eppley |
| SBE-16 (Seacat) |
4 | |
| Eco-Fluor. |
2 | |
| SBE-37 (Microcat) |
1 | |
| SBE-56 (new temp.sensor) |
1 | |
| ISUS |
1 |
UAF |
| SBE-39 (temp sensor) |
7 |
|
| MTR (temp sensor) |
4 |
|
| WetStar (Fluor) |
1 |
|
| release |
1 |
|
| Mooring: |
|
| Instrument: |
Depth |
|
| Weatherpak |
surface |
|
| Eppley |
surface |
|
| SBE-16 (Seacat) |
1m |
on bridle, UAF |
| CO2 (UAF) |
1m |
on bridle, UAF |
| MTR |
4m |
|
| MTR |
4m |
|
| SBE-16 (P) |
6m |
|
| ISUS |
11m |
cage (3 instruments) |
| SBE-16 (Seacat) |
11m |
cage (3 instruments) |
| EcoFluorometer |
11m |
cage (3 instruments) |
| SBE-39 |
15m |
|
| SBE-39 |
18m |
|
| SBE-39 |
21m |
|
| SBE-16 |
24m |
|
| EcoFluorometer |
24m |
attach to Seacat |
| SBE-39 |
28m |
|
| MTR |
32m |
both MTR on same Cage |
| MTR |
32m |
|
| SBE-39 |
35m |
|
| SBE-39 |
39m |
|
| SBE-16 |
44m |
|
| Wetstar |
44m |
|
| SBE-56 |
47m |
|
| SBE-39 |
50m |
|
| SBE-56 |
55m |
|
| SBE-37 |
60m |
|
| release |
|
|
| seafloor |
72 m |
|
| |
| Previous Deployments: |
14BSM-2A, May 2014 |
|
| |
| Mooring Design Change: |
|
| 1 |
Using CO2 buoy with GillSonic & Weatherpack |
| 2 |
At 1 meter Seacat & CO2 (UAF instrument) |
| 3 |
Add 2nd MTR at 4 meters. |
| 4 |
Shift SBE-37 & EcoFluor at 11.5 & 12.5m to 12 & 13 meters. |
| 4a |
remove instruments at 12 & 13 m. At 11m: ISUS, Seacat & EcoFlourometer |
| 5 |
At 47m, add SBE-56 temp. sensor. |
| 6 |
At 55 meters, substitute SBE-56 for 2 MTRs. |
| 7 |
At 60 meters,omit SBE-39, add in SBE-16 and ISUS |
| 7a |
At 60m, remove ISUS, Replace SBE-16(p) with SBE-37. |
| 8 |
At 61 meters,omit ISUS & SBE-37 (microcat) |
|
 |
original
 |
