Hydrothermal Plumes Over Spreading-Center Axes: Global Distributions and Geological Inferences

Edward T. Baker

NOAA Pacific Marine Environmental Laboratory, Seattle, Washington, USA

Christopher R. German

Institute of Oceanographic Sciences, Wormley, Surrey, UK

Henry Elderfield

Department of Earth Sciences, Cambridge University, Cambridge, UK

Seafloor Hydrothermal Systems: Physical, Chemical, Biological, and Geological Interactions, Geophysical Monograph 91, AGU, 47-71, 1995.
Copyright ©1995 by the American Geophysical Union. Further electronic distribution is not allowed.

OBSERVATIONAL TECHNIQUES

Formation of Plumes

Hydrothermal plumes form above sites of venting because of the buoyancy of the hot hydrothermal fluids that rise, entraining ambient sea water with a consequent continuous increase in plume volume, until neutral buoyancy is achieved and the plume disperses laterally. Models describing the physical and chemical properties of hydrothermal plumes have been presented by several workers [e.g., Middleton and Thomson, 1986; Little et al., 1987; Speer and Rona, 1989; McDougall, 1990; Rudnicki and Elderfield, 1992; Lavelle, 1994], all based upon the principles for turbulent entrainment in plumes described by Morton et al. [1956] and Turner [1973]. Using these models it is possible to calculate heat fluxes from plume and local hydrographic data, and to predict the ratio of entrained seawater to hydrothermal fluid as a function of plume height. During plume rise, ambient seawater is entrained from a range of depths such that the concentration of a property in the neutrally buoyant plume is a function of both the concentration and flux of that property in the vent fluid, and of the background profile of the property integrated over the whole height of rise of the buoyant plume. These complexities are discussed more fully in the following sections, and especially in accompanying papers by McDuff [this volume], Lupton [this volume], and Helfrich and Speer [this volume].

Hydrographic and Optical Tracers

Quantification of hydrothermal temperature anomalies is complicated by the variable background profiles of temperature and salinity found in the world ocean. In the deep Pacific, the ambient salinity gradient increases with depth and so the neutrally buoyant plume is warmer and saltier than its surroundings. An estimate of the hydrothermal temperature anomaly () is calculated as

                             (1)

where k and b are the slope and intercept, respectively, of the generally linear relationship between potential temperature () and potential density () in hydrothermally unaffected water immediately above the neutrally buoyant plume. To properly compare this value in the neutrally buoyant plume with the hydrothermal heat input at the seafloor source, however, the plume values must be corrected for the effect of local hydrography and vent fluid salinity.

In the Atlantic and wherever else the salinity gradient is negative above the ridge crest, the neutrally buoyant plume is cooler and fresher than the surrounding seawater. Equation (1) gives a negative value in this case, and hydrographic mapping of the plume is problematic at best. Evaluation of temperature anomalies must be considered within the framework of a plume model [e.g., Speer and Rona, 1989; McDougall, 1990; Rudnicki and Elderfield, 1992]. Thus most plume mapping in the Atlantic has depended on optical or chemical indices of hydrothermal discharge.

Both light attenuation and light scattering have been widely used to define hydrothermal plumes. Unlike conservative hydrographic tracers, optical tracers are nonconservative and depend on an ever-changing balance between particle production by precipitation and biological growth, and particle loss by deposition, dissolution, and ingestion. Hydrothermal fluids with a very low level of precipitable species, such as the vapor phase of a phase-separated fluid, or a fluid discharging through a thick layer of sediments, may yield a plume with a tenuous optical signal, but optically invisible plumes are rare. The only documented case we are aware of is a CH4 plume with no nephelometer or total dissolved Mn signal near 15°N on the Mid-Atlantic Ridge (MAR), a plume hypothesized to arise from fluid circulation in ultrabasic (low silica) rocks rather than basalt [Charlou et al., 1991a]. Moreover, optical tracers are often more sensitive and simpler to interpret than hydrographic tracers, since their background profiles are roughly vertically uniform. Their nonconservative nature can add to their usefulness, since an optical signal decreases more sharply than temperature with distance from its source.

Chemical Tracers

Hydrothermal fluids are enriched by up to a factor of 107 in several key tracers (e.g., Mn, Fe, CH4, H2, 3He, and many other trace species) relative to typical oceanic deep waters, so chemical anomalies associated with hydrothermal plumes can often be detected at significant distances away from hydrothermal vent sites. (The chemistry of hydrothermal fluids and plumes is more fully discussed by Lilley et al. [this volume], Lupton [this volume], Kadko et al. [this volume], and Von Damm [this volume].) Dissolved manganese (Mn) and methane (CH4) are commonly used to define hydrothermal plumes for three reasons. First, both are enriched ~106-fold in high-temperature vent fluids relative to ambient seawater [e.g., Welhan and Craig, 1983; Von Damm, 1990], so their concentrations in neutrally buoyant hydrothermal plumes directly above hydrothermal vent sites are ~102-fold higher than typical oceanic deep water. Second, both can be analyzed precisely at sea. Third, the contrasting quasiconservative behavior of Mn and distinctly nonconservative behavior of CH4 provide dynamical information about plumes. Because neutrally buoyant plumes overlie a much greater area of the midocean ridge crest than is occupied by active hydrothermal chimneys and mounds, these water column enrichments present geochemists a magnifying glass with which to prospect for new hydrothermal vent sites.

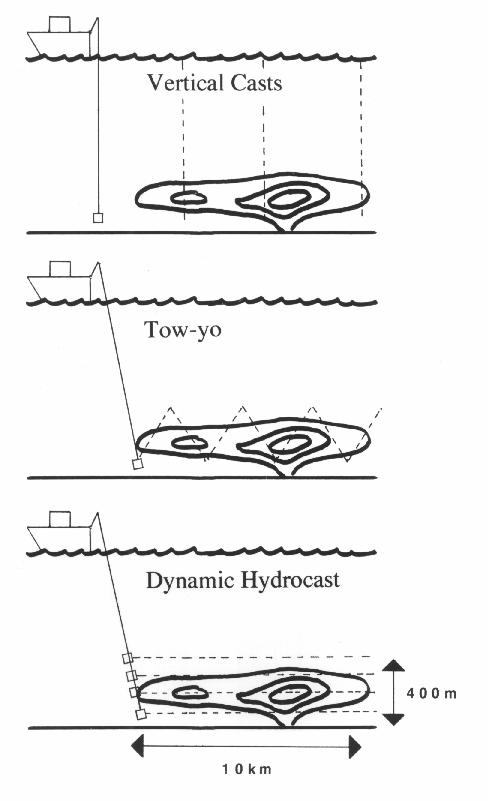

Fig. 1. Schematic comparison of three methods of shipboard plume mapping and sampling.

Sampling Techniques

Hydrographic and optical measurements are commonly combined in the form of a conductivity/temperature/depth (CTD) system interfaced with a transmissometer or nephelometer (or both). A basic sampling strategy is simply vertical casts widely spaced along the ridge axis (Figure 1). Because hydrothermal plumes are dynamic features with steep horizontal and vertical gradients, however, it is useful to adopt a sampling scheme that will reduce the problem of temporal and spatial aliasing as much as possible. Data return should be maximized from the plume horizon and minimized from waters above the plume where little useful information is present. An efficient strategy in mapping and sampling neutrally buoyant plumes is thus to conduct lengthy "tow-yos," continual raisings and lowerings of the instrumentation through the plume while slowly steaming (Figure 1). Experience shows that a typical CTD package can be towed with standard electromechanical cable at a rate of about 3-4 km hr-1, resulting in a complete up-down cycle through a 400-m plume layer about every 1 km along track using a winch speed of ~1 m s-1.

The majority of geochemical studies associated with hydrothermal plume surveys up to about 1990, and which continue in widespread use today, required conventional collection of seawater samples using CTD-rosette systems followed by ship-board or shore-based analyses for geochemical tracers. To accommodate the enlarged data sets required to address more complex geochemical problems, much investment has been made recently in novel instrumentation which can achieve greater sampling coverage or even produce real-time in situ geochemical analyses. This instrumentation will generate data in a form comparable to that readily obtainable from hydrographic and optical sensors, thus facilitating improved understanding of the biogeochemical processes active in plumes.

The first advance in geochemical studies of hydrothermal plumes came from the IFREMER laboratory's development of a continuous underway towed water sampler--the "Palanquée Dynamique" or "Dynamic Hydrocast" [Bougault et al., 1990]. This system comprises four sets of water sampling rosettes, each with a CTD sensor package and data logger, that are clamped to a cable and towed at different, known heights above the seafloor (Figure 1). Each set of water sampling rosettes comprises ten water-sampling bottles which fill progressively, and sequentially, as the rosette package is towed through the water column. The gearing on the rosettes can be adjusted so that each bottle fills progressively over 1-2 km, thus from a single deployment a series of ten integrated water samples are collected from each of four depths above the seabed over a total along-axis length of 10-20 km.

Although the Dynamic Hydrocast system enables systematic and continuous water-sampling, only a limited number of samples can be collected and these must be analyzed onboard or ashore. An alternative approach was taken by Johnson and co-workers at the Moss Landing Marine Laboratories. They developed a novel instrument package, the Submersible Chemical Analyzer (SCANNER), that could carry out analyses of nutrients, sulfide, Mn and Fe in situ [Johnson et al., 1986a,b; Coale et al., 1991; Chin et al., 1994]. The system is a deep-towed spectrophotometer that measures dissolved Mn and total dissolved Fe (Fe(II) and Fe(III)) every 5 seconds in seawater that has previously been passed through a 10 m mesh prefilter. The system connects routinely to a conventional CTD package augmented with a nephelometer and/or transmissometer. Coale et al. [1991] and Chin et al. [1994] used the SCANNER to map dissolved Fe and Mn anomalies in the range 20-50 nmol l-1 Fe and 50-200 nmol l-1 Mn in plumes over the Cleft segment of the Juan de Fuca Ridge.

More recently, SUAVE (Submersible System Used to Assess Vented Emissions), an enhanced version of the SCANNER system, has been developed by NOAA's Pacific Marine Environmental Laboratory. The SUAVE system comprises a total of six on-line colorimetric chemical detectors for Mn, Fe(II), Fe(II+III), Si, H2S, and one of PO4 or Cl, currently under development for plume and diffuse-flow studies, respectively [Massoth et al., 1991] (G. J. Massoth, personal communication, 1994). The system can currently be deployed for at least ~80 hours. Over 800 hours of successful deployment have been achieved to date upon a variety of platforms, including the manned submersible Alvin, the unmanned remotely operated vehicle ROPOS, and conventional towed CTD packages.

Sensitivity of both the SCANNER and SUAVE systems are limited by the colorimetric techniques available for dissolved Mn and Fe analyses, originally ~20 nmol l-1 and 25 nmol l-1 respectively [Chin et al., 1994]. New techniques have improved resolution to ~5-10 nmol l-1 (G. J. Massoth, personal communication, 1994). This sensitivity is sufficient for most, but not all, known plume anomalies. Dissolved Mn anomalies of only 15-20 nmol l-1 have been measured at the Snakepit and Broken Spur vent fields at 23°N and 29°N MAR [Elderfield et al., 1993; James et al., in press a], near the resolution level of the SCANNER or SUAVE systems.

To overcome this potential problem, Klinkhammer [1994] has developed an even more sensitive dissolved Mn analyzer, ZAPS (Zero Angle Photon Spectrophotometer), that can detect dissolved Mn to ambient seawater concentrations (1 nmol l-1), and can thus be employed to prospect for and investigate neutrally buoyant hydrothermal plumes anywhere on the world's spreading center system. ZAPS is a fiber-optic spectrometer which combines solid-state chemistry with photomultiplier tube detection to make flow-through chemical measurements in situ. ZAPS is also capable of being deployed as a light scattering device or ultraviolet fluorimeter [Klinkhammer et al., 1994].
